BODY |
||||
 |
||||

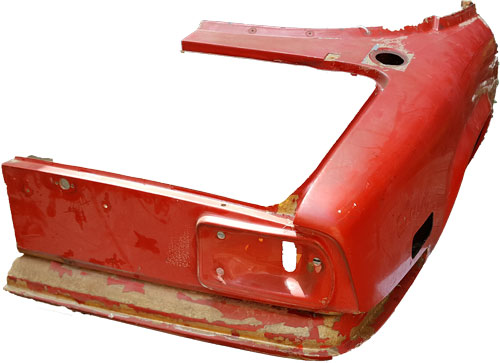

| R/H Rear Clip | $ | P.O.R. | ||
| S4 Elan | ||||
| Used | ||||
FRONT SUSPENSION |
||||
 |
||||
| Vertical Link - R/H | $ | Inquire | X023C6005Z | |
| Vertical Link - L/H | $ | Inquire | X023C6006Z | |
| Bolt-on | ||||
|
||||
| Vertical Link - R/H | $ | 305.00 | X036C6044Z | |
| Vertical Link - L/H | $ | 305.00 | X036C6043Z | |
| Knock-on | ||||
 |
||||
| Vertical Link - R/H, w/o grease holes | $ | Inquire | A023C6005Z | |
| Vertical Link - L/H, w/o grease holes | $ | Inquire | A023C6006Z | |
| Bolt-on | ||||
 |
||||
| Vertical Link - R/H, w/o grease holes | $ | Inquire | A036C6044Z | |
| Vertical Link - L/H, w/o grease holes | $ | Inquire | A036C6043Z | |
| Knock-on | ||||
 |
Wheel Bearing - Inner | $ | Inquire | G023C6017Z |
| 07100S / 07210X | ||||
| Bolt-on | ||||
 |
Wheel Bearing - Outer | $ | Inquire | G023C6016Z |
| 03062 / 03162 | ||||
| Bolt-on | ||||
 |
Wheel Bearing - Inner | $ | Inquire | G036C6042Z |
| L44610 / L44649 | ||||
| Knock-on | ||||
 |
Wheel Bearing - Outer | $ | Inquire | G036C6041Z |
| LM11910 / LM11949 | ||||
| Knock-on | ||||
 |
||||
| Bearing Seal | $ | Inquire | G023C6018Z | |
 |
Axle | $ | 65.00 | A023C6008Z |
| Bolt-on | ||||
| Chrome Moly steel | ||||
| Rolled threads | ||||
 |
Axle | $ | 79.25 | BT21C6008Z |
| Knock-on | ||||
| Chrome Moly steel | ||||
| Rolled threads | ||||
 |
||||
| Retaining Nut, Axle | $ | 0.90 | X023C6011Z | |
 |
||||
| Upper Ball Joint | $ | 37.50 | X036C6007W | |
 |
'D' Washer (small) | $ | 4.90 | X023C6009PL |
| Bolt-on | ||||
| Plated | ||||
 |
'D' Washer (large) | $ | 13.40 | X050C6000Z |
| Knock-on | ||||
| Plated | ||||
 |
||||
| Retaining Nut, Front Axle Bearing | $ | 1.75 | X036C6010Z | |
 |
||||
| Retaining Nut, Front Axle Bearing | $ | 2.00 | X036C6010PL | |
| Plated | ||||
 |
||||
| Grease Cap | $ | 7.15 | X036C6013Z | |
| Bolt-on | ||||
|
||||
| Grease Cap, Front Hub | $ | 9.00 | X050C6013Z | |
| Large diameter axle | ||||
| Knock-on | ||||
 |
||||
| Upper Trunnion Seal | $ | 3.40 | A023C6047Z | |
| Not included in Trunnion Kit below | ||||
 |
||||
| Trunnion, R/H | $ | 45.45 | X023C6025Z | |
| Trunnion, L/H | $ | 45.45 | X023C6026Z | |
 |
||||
| Trunnion Kit | $ | 17.75 | X023C6012Z | |
 |
Wishbone Bush | $ | 22.50 | X023E6011Z |
| 1/2" I.D. x 1-1/16" O.D. x 1-3/8" Long | ||||
 |
Wishbone, Elan Upper - N.O.S. | $ | 18.50 | X026C0001Z |
 |
Wishbone, Elan Upper - Used | $ | 14.00 | X026C0001Z-U |
 |
Wishbone, Elan Upper - N.O.S. | $ | 20.00 | A026C0001Z |
 |
Wishbone, Elan Upper - Used | $ | 16.00 | A026C0001Z-U |
 |
Wishbone, Elan Lower - N.O.S. | $ | 22.50 | A026C0002Z |
 |
Wishbone, Elan+2 Lower - Used | $ | 35.00 | A065C0095Z |
REAR SUSPENSION |
||||
 |
||||
| Diff / Rear Carrier Bearing | $ | Inquire | G036D6017Z | |
| 6206 / 2RS1 | ||||
 |
||||
| Circlip, 62mm Internal - Diff. & Carrier Bearings | $ | 0.90 | X036D6006Z | |
 |
||||
| Circlip, 30mm External - Diff. & Carrier Bearings | $ | 0.50 | X036D6007Z | |
 |
||||
| Bolt, Drive-Coupling | $ | Inquire | X023D0172Z | |
 |
||||
| Wishbone | $ | Inquire | ||
 |
Wishbone Bush - Inner | $ | 13.00 | X036D6010Z |
| 7/16" I.D. x 1-3/8" O.D. x 1-1/2" Long | ||||
| Wishbone Bush - Outer | $ | N.L.A. | X036D6011Z | |
| 7/16" I.D. x 7/8" O.D. x 1-3/16" Long | ||||
 |
||||
| Spherical Bearing - Rear Wishbone - 26R | 58.75 | A026D6011W | ||
| 7/16" I.D. x 15/16" O.D. | ||||
 |
Hub Retaining Lock Nut | $ | 1.25 | A075W3006Z |
| 5/8 - 18 UNF thread | ||||
| Cadmium plated | ||||
 |
||||
| Halfshaft - Elan+2 (Used) | $ | 90.50 | A050R0034Z-U | |
 |
||||
| Halfshaft - Elan+2 (Used) | $ | 92.50 | B050R0034Z-U | |
 |
||||
| Halfshaft - Elan (Used) | $ | 89.80 | A026D0015W-U | |
 |
||||
| Halfshaft Kit - C/V Joint Style | $ | 1935.00 | B026D0123W | |
| Price is for complete car kit | ||||
 |
||||
| Screw, C/V Joint Retaining | $ | 0.85 | AB19D0172Z | |
 |
||||
| Washer, C/V Joint Screw | $ | 0.25 | AB19D5015Z | |
 |
||||
| Yoke, Rear Suspension - 26R | $ | 192.50 | X026D7005Z | |
 |
Yoke, Rear Suspension - 26R | $ | 225.00 | A026D7005Z |
| Forged in the U.S.A. | ||||
| Chrome Moly steel | ||||
| Magnetic Particle Inspected (MPI) | ||||
 |
Universal Joint - w/ grease fitting | $ | 65.00 | X023D6005Z |
| 1300 Series | ||||
| Universal Joint - w/ grease fitting - Heavy Duty | $ | X023D6005HD | ||
| 1300 Series | ||||
| Universal joint - w/o grease fitting | $ | 62.65 | A023D6005Z | |
| 1300 Series | ||||
| Universal joint - w/o grease fitting - Heavy Duty | $ | 67.75 | A023D6005HD | |
| 1300 Series | ||||
 |
||||
| Universal Joint Selection Chart | ||||
 |
||||
| Brake Rotor Drive Pin | $ | 2.75 | A026D0750Z | |
| Set of 4 | ||||
| 26R | ||||
 |
Washer, Rear Axle / Yoke | $ | 6.15 | X023D0048Z |
| Hardened | ||||
 |
Washer, Rear Axle / Yoke | $ | 6.40 | X023D0048PL |
| Hardened | ||||
| Plated | ||||
ENGINE |
||||
 |
||||
| Timing Chain Dampener | $ | 25.00 | A026E0014W | |
TRANSMISSION |
||||
 |
||||
| Bearing - Input Shaft | $ | 17.25 | C026F6125Z | |
| 206NR | ||||
 |
||||
| Bearing - Lay Shaft | $ | 18.75 | C026F6126Z | |
| 305NR | ||||
 |
||||
| Shift Fork 1-2 | $ | 99.75 | X026F7231Z | |
 |
||||
| Shift Fork 3-4 | $ | 99.75 | X026F7230Z | |
STEERING |
||||
 |
||||
| Steering Column Bush - Upper | $ | 12.65 | X023H6031W | |
 |
||||
| Steering Column Coupling Bushing | $ | 2.70ea | X023H6003Z | |
| 8 required per coupling | ||||
 |
||||
| Steering Rack Bellows - L/H | $ | 20.15 | A023H6027Z | |
| Steering Rack Bellows - R/H | $ | 23.15 | B023H6098Z | |
| Ball Joint, Steering Arm (Tie Rod End) | $ | 41.50 | X023H6007W | |
 |
Shim, Steering Rack Tie Rod Ball | |||
| .010" Thk - Carbon steel | $ | 2..95 | X023H1061Z | |
| .002" Thk - Carbon steel | $ | N.L.A. | X023H1060Z | |
|
Shim, Steering Rack Tie Rod Ball | |||
| .010" Thk - Stainless steel | $ | 3.15 | X023H1061S | |
| .002" Thk - Stainless steel | $ | 3.20 | X023H1060S | |
 |
||||
| Steering Rack Locking Washer | $ | 5.25 | X023H5003Z | |
| Plated | ||||
 |
Steering Rack | $ | 447.50 | X026H2703HT |
| 26 inch O.A.L. | ||||
| Heat treated teeth | ||||
| Rolled threads | ||||
|
Steering Rack - 26R Special | $ | 398.50 | A026H2703Z |
| 25.5 inch O.A.L. | ||||
| Rolled threads | ||||
 |
||||

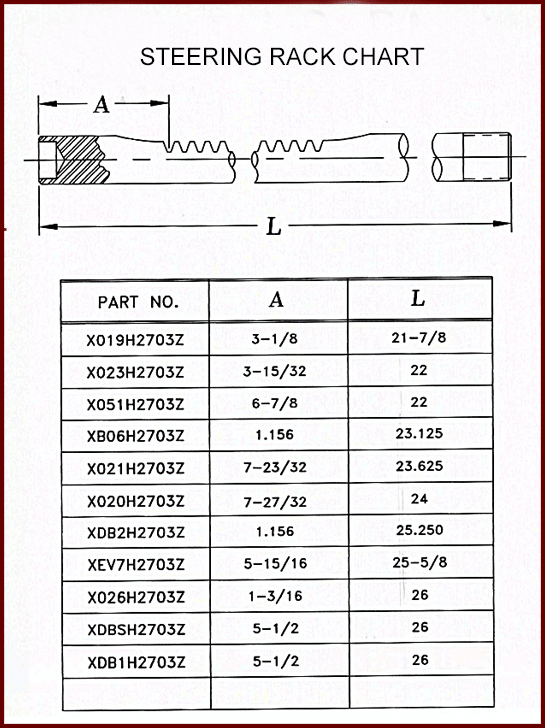

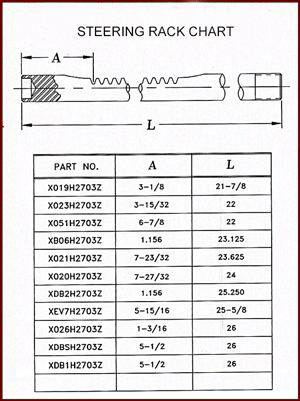

| Steering Rack Chart | ||||
BRAKE |
||||
 |
||||
| Front Caliper Mount - 26R - R/H | $ | 123.50 | X026C6021Z | |
| Front Caliper Mount - 26R - L/H | $ | 123.50 | X026C6022Z | |
 |
||||
| Rotor, Front - 26R | $ | 245.00 | A026J0003Z | |
| 9.750" Diameter | ||||
 |
||||
| Rotor, Rear - 26R | $ | 245.00 | X026J0001Z | |
| 9.250" Diameter | ||||
 |
Caliper, Front, 26R - L/H - AR | $ | 795.00 | X023J6102HC |
| Caliper, Front, 26R - R/H - AR | $ | 795.00 | X023J6103HC | |
| Less pads | ||||
| Resin impregnated | ||||
| Hard coated | ||||
 |
||||
| Caliper Plug - AR | $ | 28.50 | X023J8101Z | |
 |
||||
| O-Ring, Caliper Plug - AR | $ | 0.65 | X023J8102Z | |
 |
||||

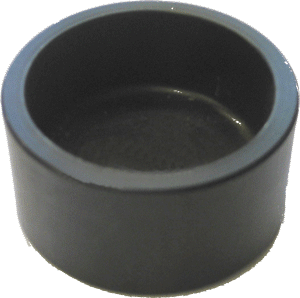

| Caliper Piston - AR (2 inch dia) | $ | 35.50 | X023J6135Z | |
| Aluminum | ||||
| Hard anodized coated | ||||
 |
||||
| O-Ring, Caliper Piston - AR | $ | 18.00 | X023J6151Z | |
| 2 inch I.D. | ||||
 |
||||
| Caliper, Rear - L/H - NR | $ | Inquire | X026J6002HC | |
| Caliper, Rear - R/H - NR | $ | Inquire | X026J6003HC | |
 |
||||
| Caliper Plug - NR | $ | 27.00 | X023J8001Z | |
 |
||||
| O-Ring, Caliper Plug - NR | $ | 0.50 | X023J8002Z | |
 |
||||
| Caliper Piston - NR (1-1/2 inch dia) | $ | 36.00 | X023J6035Z | |
| Aluminum | ||||
| Hard anodizing coated | ||||
 |
||||
| O-Ring, Caliper Piston - NR | $ | 18.00 | X023J6051Z | |
| 1-1/2 inch I.D. | ||||
 |
||||
| Caliper Bleeder Screw - Front | $ | 7.25 | X023J6057S | |
 |
||||
| Bleeder Screw Cap - Front | $ | 1.10 | A023J6034Z | |
|
||||
| Bleeded Screw Cap - Rear | $ | 0.90 | X023J6034Z | |
 |
||||
| Tube Assy, Cross-over - AR/NR | $ | 19.75 | X023J8003Z | |
 |
||||
| Brake Pad Retainer | $ | 5.00 | X023J3001Z | |
| Stainless steel | ||||
 |

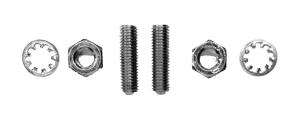

Pad Retainer Kit | $ | 4.80 | X023J9500Z |
| 2 Nuts | ||||
| 2 Studs | ||||
| 2 Lockwashers | ||||
 |
||||

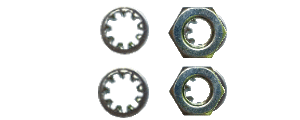

| Pad Retainer Kit w/o Studs | $ | 1.75 | X023J9501Z | |
| 2 Nuts | ||||
| 2 Lockwashers | ||||
 |
||||
| Balance Bar - 26R | $ | 27.00 | A026J1530K | |
 |
||||
| Rear Caliper Mounting Screw | $ | 8.75 | A026J0002Z | |
 |
||||
| Caliper Mount - Front - L/H '26R' Conversion | $ | 120.00 | X050C6021Z | |
| Caliper Mount - Front - R/H '26R' Conversion | $ | Inquire | X050C6022Z | |
 |
||||
| Rotor, Front '26R' Conversion | $ | 155.00 | B026J0003Z | |
| 9.670" Diameter | ||||
CLUTCH |
||||
 |
||||
| Pivot Pin | $ | 16.00 | A026Q6009Z | |
| Plated | ||||
 |
||||
| Bearing, Throwout | $ | 27.50 | A023Q6040W | |
 |
||||
| Bell Housing - Aluminum | $ | Inquire | B026Q6114Z | |
| Tapped holes are Heli-Coiled | ||||
| Weight - 8.3 lbs | ||||
 |
||||
| Bell Housing - Magnesium | $ | 1120.00 | C026Q6114Z | |
| Tapped holes are Heli-Coiled | ||||
| Not Coated | ||||
| Weight - 5.3 lbs | ||||
|
||||
| Bell Housing - Phosphate | $ | 1195.00 | C026Q6114K | |
| Tapped holes are Heli-Coiled | ||||
| Mag. Phosphate coated | ||||
| Weight - 5.3 lbs | ||||
FINAL DRIVE |
||||
 |
||||
| Differential Gear Housing Bearing | $ | Inquire | GEV7D6017Z | |
| LM48548 / LM48510 | ||||
EXHAUST |
||||
 |
||||
| Bracket, Exhaust Hanger | $ | 15.00 | X036S6002Z | |
| Stainless steel | ||||
Most parts are aftermarket reproductions and no inference is intended that any were manufactured by the original manufacturer |
||||
