COUPLING (DONUT) BOLTS


Bolt, Drive-Coupling $ 11.75 X023D0172Z
3.78" Bolt Circle
2-3/4" Long

Donut Bolt Mk   3.62" $ Inquire B041D0172Z
4.44" Bolt Circle

Donut Bolt FT200   3.38" $ 16.00 A041D0172Z
5.25" Bolt Circle

Donut Bolt FT200   3.05" $ 29.85 BT15D0172Z
5.25" Bolt Circle





TUBE YOKES


X014D7005 1140 Series - 2.0" $ 32.25 X014D7005



1140 Series 2.5" $ 41.00 X046D7005




1300 Series    1.845" $ N.L.A. X023D7005B
Forged in the U.S.A.
Medium Carbon steel
Magnetic Particle Inspected (MPI)

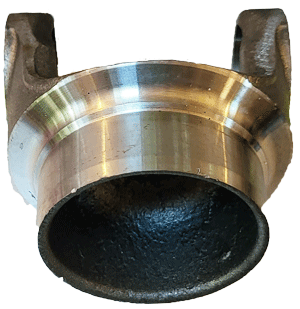

1300 Series    1.845" $ 127.50 A023D7005B
Forged in the U.S.A.
Chrome Moly steel
Magnetic Particle Inspected (MPI)



1300 Series     1.812" $ 69.50 X023D7005





1300 Series    2.5" $ 65.00 A023D7005





1300 Series     3.0" $ 65.00 C023D7005





1310 Series     1.875" $ Inquire PP3126-1417S





1310 Series    2.375" $ 40.00 B023D7005





1350 Series     2.5" $ Inquire D023D7005






FLANGE YOKES



Flange Yoke - 1140 Series $ 24.60 X014D6007Z
Uses 5/16 inch Bolt
1-3/4 inch x 2-3/16 inch

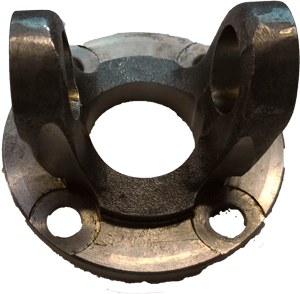

Flange Yoke - 1140 Series $ 27.05 A014D6007Z
Uses 3/8 inch Bolt
1-15/16 inch x 2-5/16 inch



Flange Yoke - 1300 Series $ 38.75 X018D6007Z
Uses 3/8 inch Bolt
2 inch x 2-3/8 inch

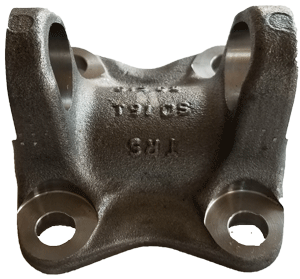

Flange Yoke - 1300 Series $ 89.75 X019D6007Z
Uses 7/16 inch Bolt
2.40 inch x 2.86 inch





U/JOINTS



Universal Joint - w/o Grease Fitting $ 50.40 C023D6005Z
1140 Series

Universal Joint - w/ Grease Fitting $ 65.00 X023D6005Z
1300 Series

Universal Joint - w/o Grease Fitting $ 62.65 A023D6005Z
1300 Series

Universal Joint - w/o Grease Fitting - Heavy Duty $ 67.75 A023D6005HD
1300 Series

Universal Joint - w/o Grease Fitting $ 47.25 B023D6005Z
1310 Series

Universal Joint - w/o Grease Fitting, Heavy Duty $ 54.15 B023D6005HD
1310 Series

Universal Joint - w/o Grease Fitting $ 105.00 D023D6005Z
1350 Series



Universal Joint Selection Chart





Most parts are aftermarket reproductions and no inference is intended that any were manufactured by the original manufacturer
