Seat
BRG $ Inquire A023B1174Z-G
Black $ Inquire A023B1174Z-B

Mounting hardware is molded in



Body Spring $ 7.25 X023B7101Z



Body Spring Clip $ 4.50 X023B7100Z



Windscreen Beading - White, Type A $ 4.05/ft A023B6060W
Windscreen Beading - White, Type B $ Inquire X023B6060W

Windscreen Beading - Black, Type A $ 3.60/ft A023B6060B
Windscreen Beading - Black, Type B $ 3.60/ft X023B6060B

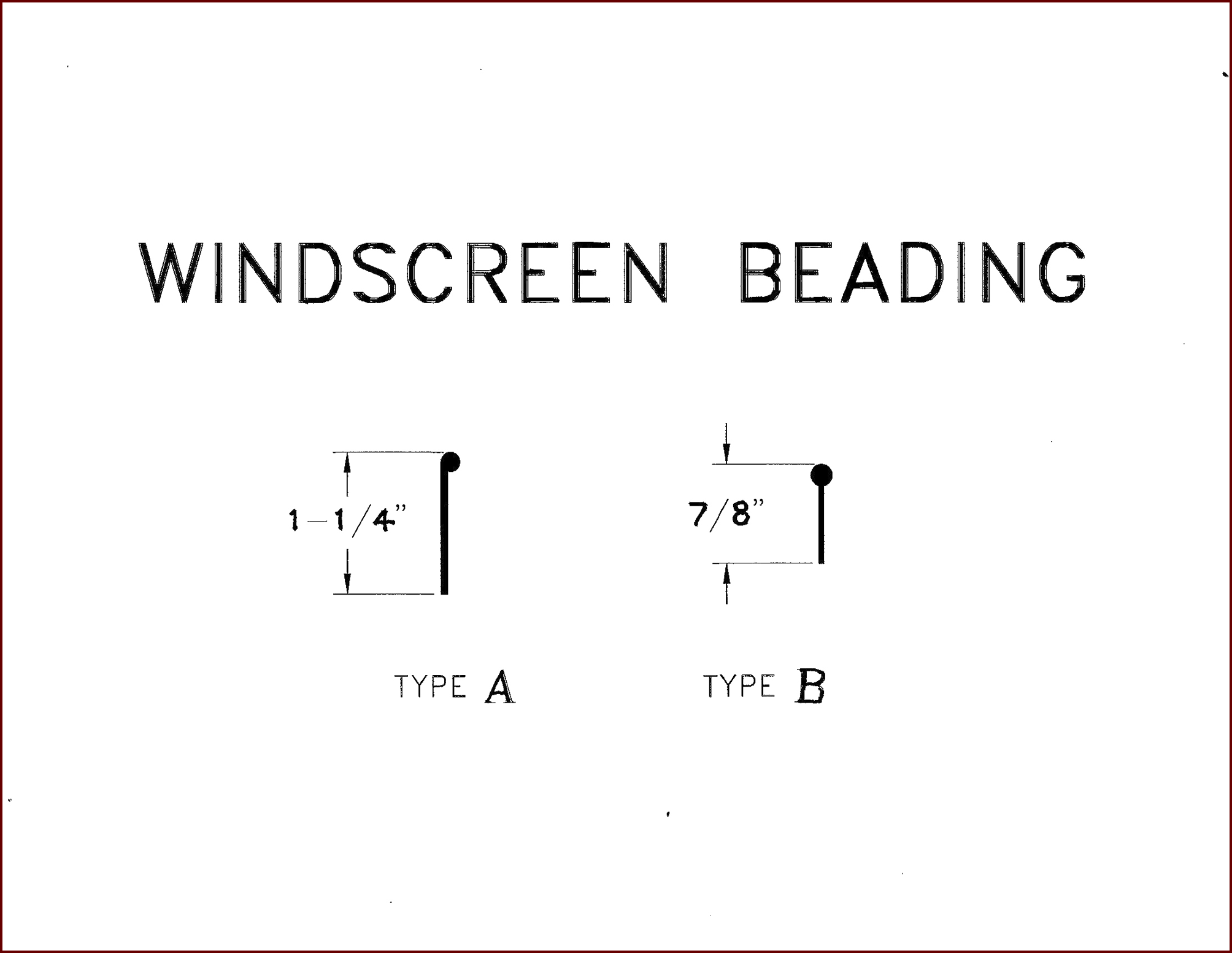

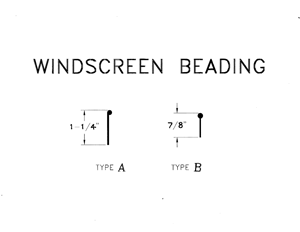

Windscreen Beading Measurement





FRONT SUSPENSION




Lotus vertical link

Vertical Link - R/H $ 340.00 X023C6005Z
Vertical Link - L/H $ 340.00 X023C6006Z




Lotus verical link

Vertical Link - R/H, w/o grease holes $ Inquire A023C6005Z
Vertical Link - L/H, w/o grease holes $ Inquire A023C6006Z




Front axle Axle $ 65.00 A023C6008Z
Chrome Moly steel
Rolled threads


Retaining nut
Retaining Nut, Front Axle Bearing $ 1.75 X036C6010Z



Retaining nut
Retaining Nut, Front Axle Bearing $ 2.00 X036C6010PL
Plated


D washer
'D' Washer - Unplated $ N.L.A. X023C6009Z
'D' Washer - Plated $ 4.90 X023C6009PL



Grease cap
Grease Cap $ 7.15 X036C6013Z




Bearing Seal $ Inquire G023C6018Z




Wheel Bearing, Inner $ Inquire G023C6017Z
7100S / 7210X




Wheel Bearing, Outer $ Inquire G023C6016Z
03062 / 03162



Wheel Stud -Mk51
2.80" O.A.L. $ 23.25 X051C6015Z
3.05" O.A.L. $ 23.25 A051C6015Z
3.40" O.A.L. $ 23.25 B051C6015Z
3/8" UNF thread
Chrome Moly steel
Rolled thread

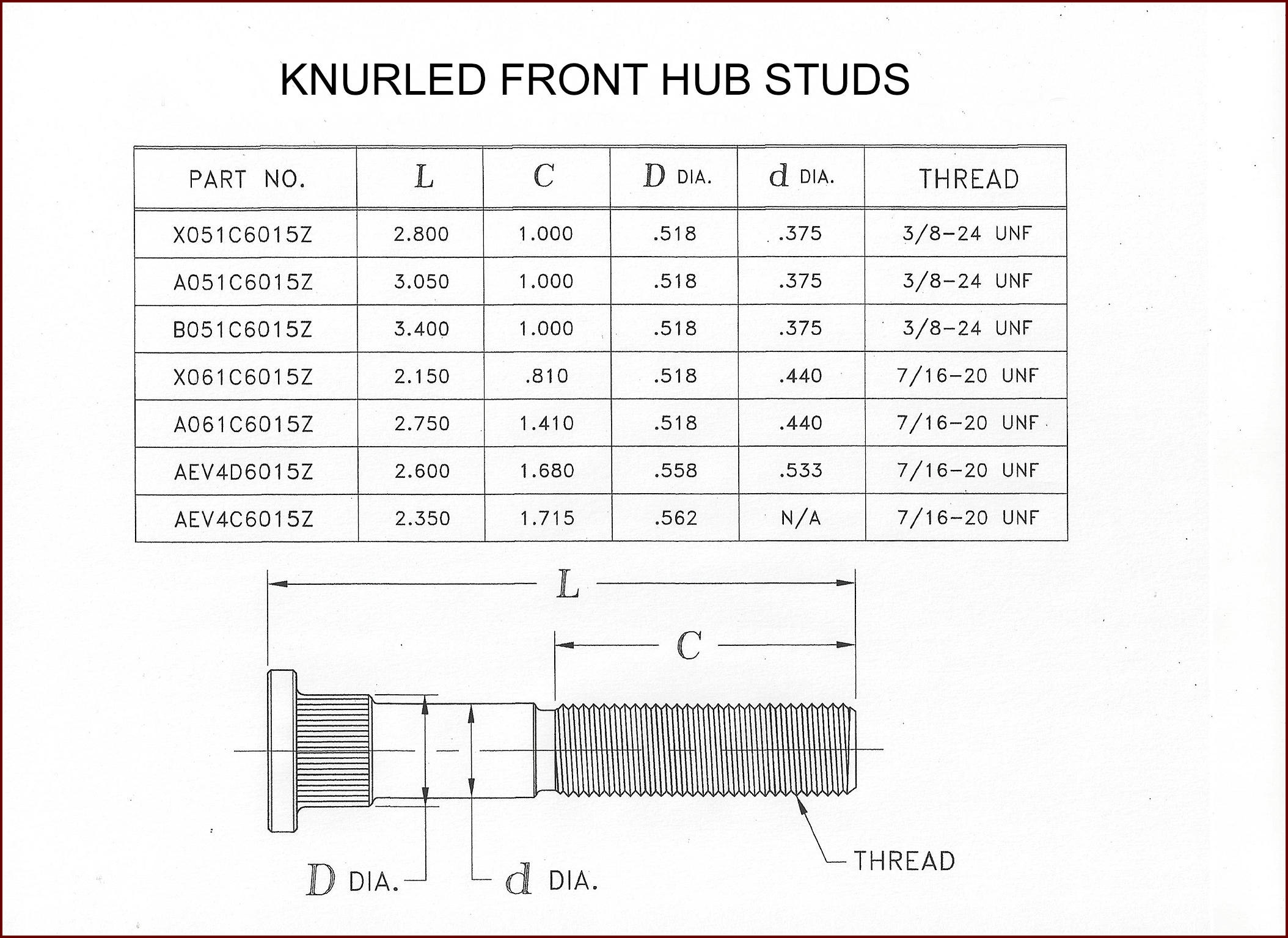

Knurled Front Hub Studs chart




Wheel Stud - Mk61
2.15" O.A.L. $ 19.50 X061C6015Z
2.75" O.A.L. $ 18.95 A061C6015Z
7/16" UNF thread
Chrome Moly steel
Rolled thread


Upper trunnion seal
Trunnion Seal $ 3.40 A023C6047Z
Not included in Trunnion Kit below



Trunnion
Trunnion, R/H $ 45.45 X023C6025Z
Trunnion, L/H $ 45.45 X023C6026Z



Trunnion kit
Trunnion Kit $ 17.75 X023C6012Z




Upper Ball Joint $ 136.50 B023C6007Z
5/8 - 18 UNF thread
Modern style




Upper Ball Joint Boot $ Inquire X023C3007Z
Original style




Front Wheel Spacer - Mk51 - Cast $ 137.25 X051C0001Z
1.125 inches thick
Aluminum

Front Wheel Spacer - Mk51 - Billet $ 108.00 X051C0001B
1.125 inches thick
Aluminum



Front Wheel Spacer - Mk61 $ 137.25 X061C0001Z
.81 inches thick




Front Upper Wishbone $ 280.00 X051C0001PL
Nickel plated



Lower Wishbone - L/H - Mk51/61 $ Inquire X051C0022PL
Lower Wishbone - R/H - Mk51/61 $ Inquire X051C0023PL
w/o ARB tabs
Nickel plated


Lower Wishbone - L/H - Mk51/61 $ Inquire A051C0022PL
Lower Wishbone - R/H - Mk51/61 $ 445.00 A051C0023PL
w/ ARB tabs
Nickel plated


Wishbone Bush - Upper $ 18.00 X023C6004Z
3/8" I.D. x 3/4" O.D. x 1-7/32" Long
Chrome Moly steel inner sleeve
Black Oxide coated outer sleeve


Wishbone Bush - Upper and Lower $ Inquire X023E6011Z
1/2" I.D. x 1-1/16" O.D. x 1-3/8" Long
Chrome Moly steel inner sleeve
Black Oxide coated outer sleeve



Wishbone Bushing - Lower $ Inquire A022C6004Z
Chrome Moly ssteel inner sleeve





REAR SUSPENSION





Carrier Housing, L/H - Mk51 $ 695.00 X051D0055B
Magnesium
Mag. Chromate coated

Carrier Housing, R/H - Mk51 $ 695.00 X051D0044B
Magnesium
Mag. Chromate coated



Carrier Housing - Mk61 $ 695.00 X061D0066B
Magnesium
Mag. Chromate coated

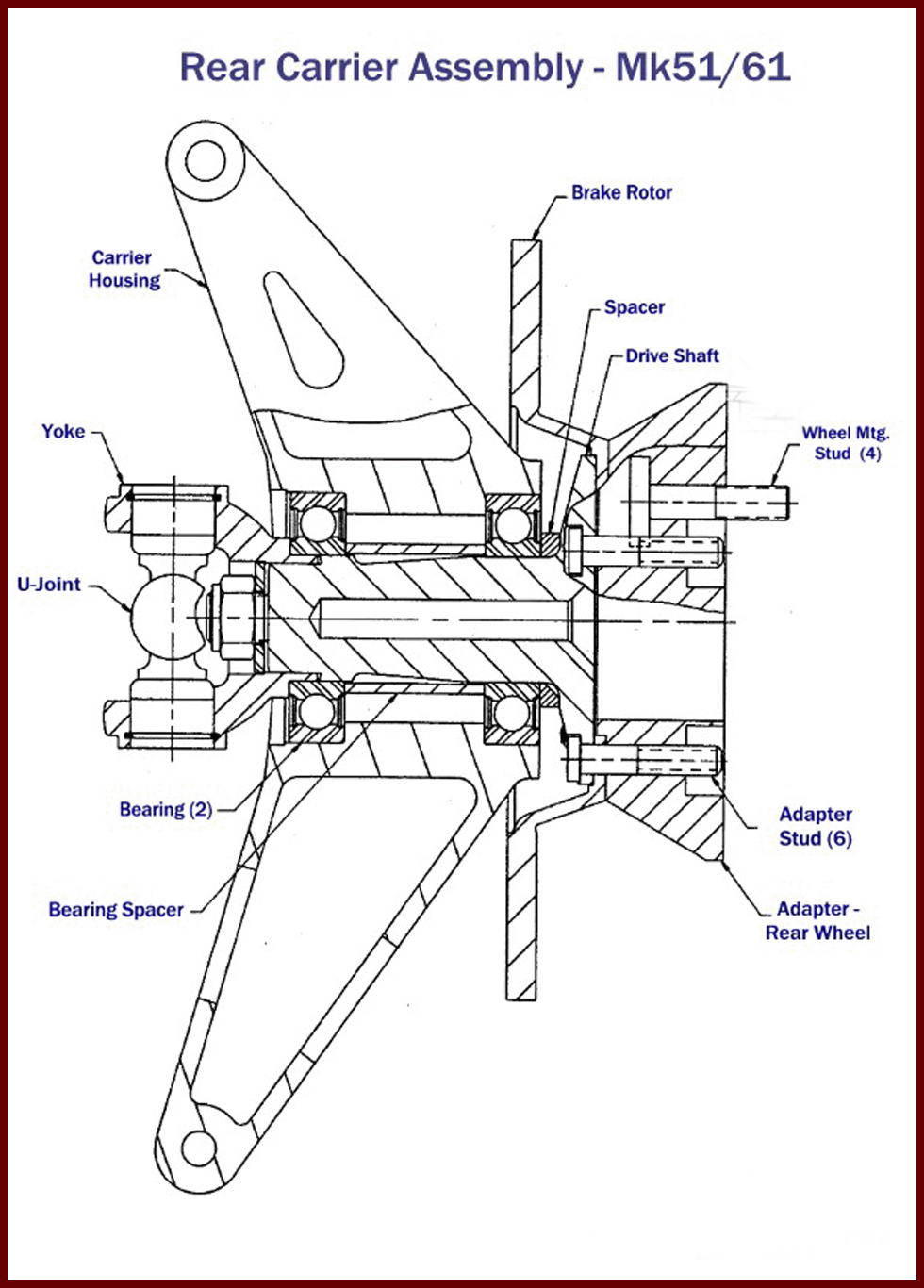

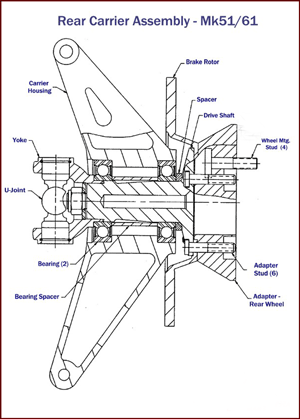

Rear Carrier Assembly - Mk51/61





Carrier Housing Bearing $ Inquire G023D6017Z
6208-2RS1



Bearing spacer
Spacer - Bearing to Bearing $ 12.50 X023D0148B



Spacer Spacer - Outer Bearing to Hub $ 10.00 X023D0186PL
Plated
Chrome Moly steel


Adapter Stud
BSF $ 11.75 X051D6015Z
UNF $ 23.75 A051D6015Z
1.788" Long
Rolled thread


Wheel Stud
BSF $ 10.85 B051D6015Z
UNF $ 11.75 C051D6015Z
2.25" Long
Rolled thread

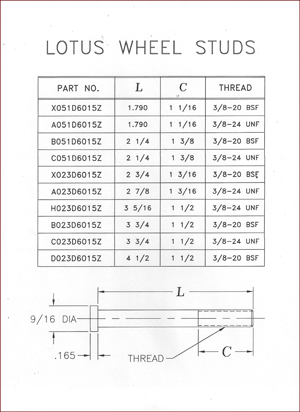

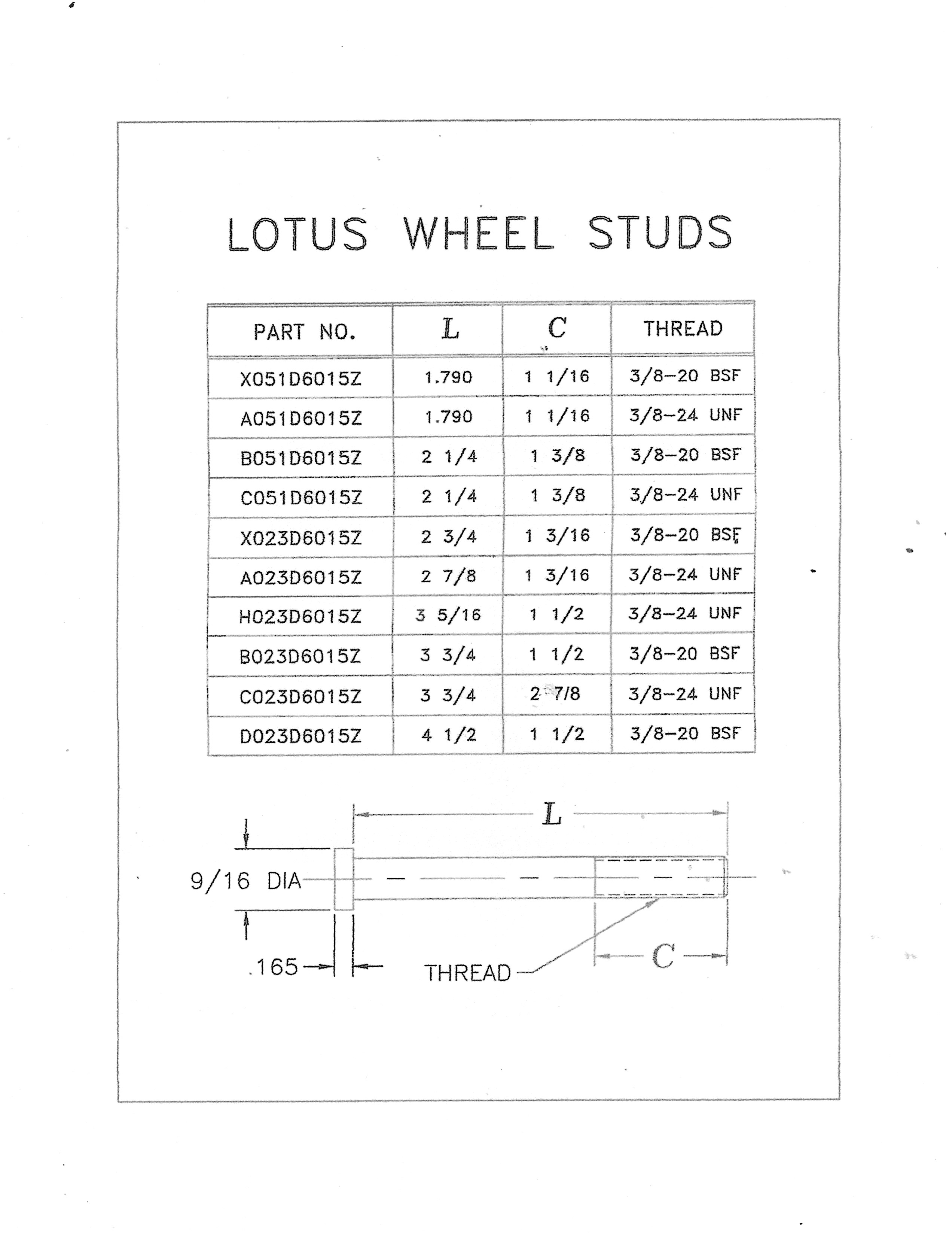

Lotus Wheel Studs chart




Bolt, Drive-Coupling $ 11.75 X023D0172Z
2-3/4" Long



Lower wishbone Lower Wishbone - L/H (Mk51A) $ Inquire A023D0013PL
Lower Wishbone - R/H (Mk51A) $ Inquire A023D0014PL
Lower Wishbone - R/H (Mk51A) - Used $ 290.00 A023D0014PL-U
w/o ARB tabs
Nickel plated


Lower Wishbone - L/H $ Inquire A051D0013PL
Lower Wishbone - R/H $ Inquire A051D0014PL
w/ ARB tabs
Nickel plated



Rear Wheel Adapter $ 235.00 X051D0001Z
1.495" thick
Aluminum



Lotus outboard driveshaft

Outboard Drive Shaft $ 695.00 X023D0003Z
Chrome Moly steel
Rolled thread



Rear Shaft Yoke - 10 Spline $ N.L.A. X023D7005Z
Light duty




Rear Shaft Yoke - 10 Spline $ 271.00 A023D7005Z-CM
Forged in the U.S.A.
Chrome Moly steel
Magnetic Particle Inspected (MPI)


Lock nut rear axle Lock Nut - Rear Axle Yoke $ 2.65 X023D6019Z
5/8 - 18 UNF thread
Zinc plated
Special thickness


Washer, Rear Axle / Yoke $ 6.15 X023D0048Z
Hardened
For 5/8" diameter bolt

Washer, Rear Axle / Yoke $ 6.40 X023D0048PL
Hardened
Plated
For 5/8" diameter bolt


U-joint

Universal Joint - w/ grease fitting $ 65.00 X023D6005Z
1300 Series

Universal Joint - w/o grease fitting $ 62.65 A023D6005Z
1300 Series

Universal Joint - w/o grease fitting - Heavy Duty $ Inquire A023D6005HD
1300 Series



Universal Joint Selection Chart




Rear Wheel Stud
7/16 - 20 UNF thread
1.77" Original $ 16.50 X051D6002Z
3.00" $ 24.95 B051D6002Z
Chrome Moly steel
Rolled thread


Halfshaft Halfshaft - 10.75" $ 315.00 B023D0015W
Halfshaft - 11.25" $ Inquire X023D0015W
Halfshaft - 11.75" $ Inquire A023D0015W
Halfshaft - 12.75" $ Inquire C023D0015W

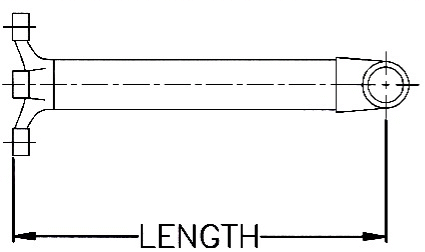

Halfshaft Measurement




Spherical rod end Spherical Rod End
3/8"   Diameter  5/8 - 18 UNF thread   2.500" Length $ 115.25 A023D6003W
Chrome Moly steel
Rolled thread
TFE Liner
Made in U.S.A.

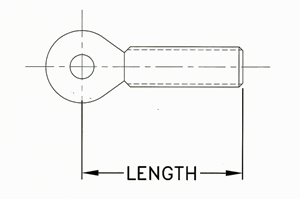

Spherical Rod End Measurement





Clevis Bolt Measurement



Clevis Bolt, Upper Link - Mk51C/61
1/2 - 20 UNF thread    Length - 3.425"
5/16" Diameter cross hole $ 55.00 X061D0190W
3/8" Diameter cross hole $ 55.00 A061D0190W

Clevis bolt Clevis Bolt, Lower Link - Mk51A&B $ Inquire X023D0190PL
7/16 - 20 UNF thread   Length - 5.031"
Plated

Clevis bolt Clevis Bolt, Lower Link - Mk51C/61 $ Inquire A023D0190W
7/16 - 20 UNF thread   Length - 5.031"
Unplated



Sway Bar Link / Radius Arm Bush $ 10.35 X023D6001Z
3/8" I.D. x 3/4" O.D. x 7/8" Long
Chrome Moly steel inner sleeve
Upper Link Bush $ 15.85 X023D6010Z
1/2" I.D. x 7/8" O.D. x 15/16" Long
Chrome Moly steel inner sleeve
Lower Wishbone Bush $ 23.50 X023D6011Z
7/16" I.D. x 15/16" O.D. x 1-3/8" Long
Chrome Moly steel inner sleeve




ENGINE



Engine Mounting Bush $ Inquire X023E6011Z
1/2" I.D. x 1-1/16" O.D. x 1-3/8" Long
Chrome Moly steel inner sleeve
Black Oxide coated outer sleeve




TRANSAXLE




Engine Adapter $ 510.00 X023Q6114Z
3-1/4"
Aluminum



L/H Rearward Mk 4/5/6 $ 690.00 A023F8879Z
R/H Rearward Mk 4/5/6 $ 717.50 A023F8880Z

L/H Rearward Mk8 $ 648.75 B023F8879Z
R/H Rearward Mk8 $ 693.00 B023F8880Z

L/H Rearward Mk9 $ 715.00 C023F8879Z
R/H Rearward Mk9 $ 735.00 C023F8880Z



Stub Axle Bearing - Mk9 $ Inquire G023F6126Z
4207 - ATN9




Differential Bearing - Mk8 $ Inquire G023F6024Z8
11315 / 11162




Differential Bearing - Mk9 $ Inquire G023F6024Z9
11300 / 11162



Transaxle Mounting Bush $ Inquire X023E6011Z
1/2" I.D. x 1-1/16" O.D. x 1-3/8" Long
Chrome Moly steel inner sleeve
Black Oxide coated outer sleeve



Circlip, Outer Race $ 4.00 A023F6006Z

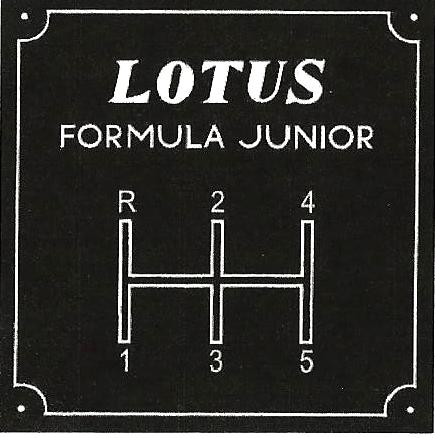

Shift Pattern Plate (A) - Lotus $ 6.50 A023F2075Z
Plastic, 2-1/4" square



Shift Pattern Plate (B) - Lotus $ 6.50 B018F2075Z
Plastic, 2-1/4" square



Shift Pattern Plate (C) - Lotus $ 6.50 C018F2075Z
Plastic, 2-1/4" square



Shift Pattern Plate (D) - Lotus $ 6.50 D018F2075Z
Plastic, 2-1/4" square





STEERING



Steering column clamp
Steering Column Clamp $ 17.85 X023H6038Z




Steering Wheel - 11" Diameter $ Inquire
Thick grip, black spokes



Steering Wheel - 11" Diameter $ Inquire
Thick grip



Steering Wheel - 12" Diameter $ Inquire
Thick grip



Steering wheel hub

Steering Wheel Hub $ 59.85 X023H0021Z




Tie rod end

Ball Joint, Steering Arm (Tie Rod End) $ 41.50 X023H6007W




Shim, Steering Rack Tie-Rod Ball
.010" Thk - Carbon steel $ 2.95 X023H1061Z
.002" Thk - Carbon steel $ N.L.A. X023H1060Z

Shim, Steering Rack Tie-Rod Ball
.010" Thk - Stainless steel $ 3.15 X023H1061S
.002" Thk - Stainless steel $ 3.20 X023H1060S



Steering Rack Locking Washer $ 5.25 X023H5003Z
Plated



Steering Rack Housing Extension Retaining Screw $ 0.25 X022H9002Z
Plated
Cross drilled for safety wire



Steering Column Bush $ 12.65 X023H6031W




Steering Column Coupling Bushing $ 2.70 X023H6003Z
8 required per coupling




Steering Rack Mount $ 110.00 X023H0014Y




Steering Rack Bellows $ 20.15 A023H6027Z



Steering Rack - Mk22 $ 398.50 X051H2703Z
Rolled threads
Length of 22" overall

Steering Rack - Mk22 $ 447.50 X051H2703HT
Rolled threads
Heat treated teeth
Length of 22" overall



Steering Rack Chart





Steering Column $ N.L.A. X023H6055NP
23-3/4" Length




Steering Column Coupling Assy - Used $ 32.50 X023H6002W-U



Lotus steering arm Steering Arm - L/H $ 104.65 X022H6001Z
Steering Arm - R/H $ 104.65 X022H6000Z
Forged Chrome Moly steel - Made in U.S.A.
Tapered hole
7" Overall length


Steering Arm - L/H $ 104.65 A022H6001Z
Steering Arm - R/H $ 104.65 A022H6000Z
Forged Chrome Moly steel - Made in U.S.A.
Straight hole
7" Overall length





BRAKE




Rotor $ 205.00 X023J0001Z
9.570" Diameter





Balance Bar Assembly $ 253.00 X023T0009Z
Individual pieces available




Balance Bar Clevis $ 66.50 X023J1533Z
Nickel plated



Balance Bar $ 27.75 X023J1530Z
Chrome Moly steel
Rolled threads

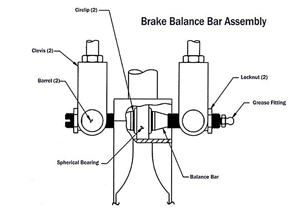

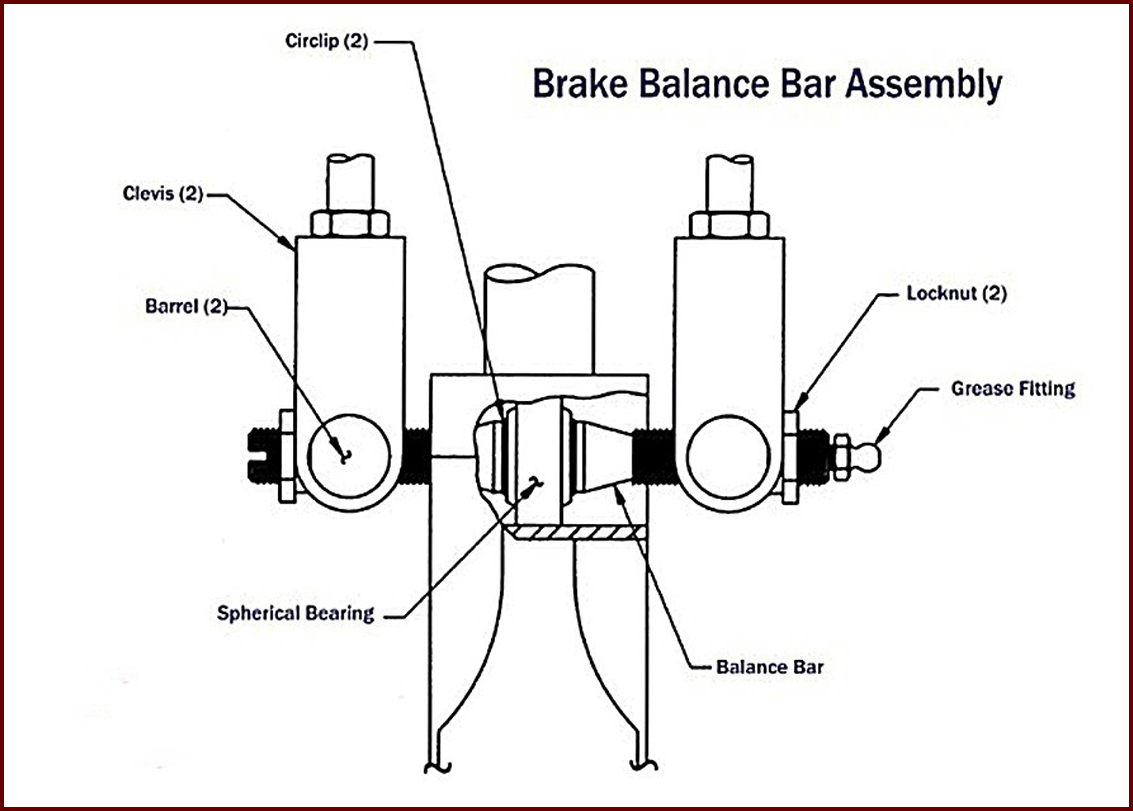

Balance Bar Assembly Drawing
