BODY



Windscreen Beading - White, Type A $ 4.05/ft A023B6060W
Windscreen Beading - White, Type B $ Inquire X023B6060W

Windscreen Beading - Black, Type A $ 3.60/ft A023B6060B
Windscreen Beading - Black, Type B $ 3.60/ft X023B6060B



Windscreen Beading Measurement






FRONT SUSPENSION



Wheel stud nut
Wheel Stud Nut, Inner (UNF only) $ 4.75 A023C7050Z



WHEEL STUDS
BSF/BSF $ 15.50 A023C6015Z
3.719 " OAL
Rolled threads

UNF/UNF $ 19.95 C023C6015Z
3.969 " OAL
Rolled threads
Chrome Moly steel


Lug nut Lug Nut (BSF) $ 8.65 X023D6000NP
Lug Nut (UNF) $ 8.65 A023D6000NP
Silicon bronze


Lotus hub
Hub, Aluminum $ 295.00 X041C6014Z





Wheel Bearing - Front -Inner $ Inquire G023C6017Z
07100S / 007210X



Wheel Bearing - Front - Outer $ Inquire G023C6016Z
03062 / - 03162


Lotus 41 axle Axle
Chrome Moly steel $ 79.25 A041C6008Z
Rolled threads


Retaining Nut, Axle $ 0.90 X023C6011Z




Wishbone Bush $ 18.00 X023C6004Z
3/8" I.D. x 3/4" O.D. x 1-7/32" Long
Chrome Moly steel inner sleeve



Lotus 41 caliper mount

Caliper Mount $ 49.75 X041J0061Z





Upper Ball Joint $ 136.50 B023C6007Z
5/8 - 18 UNF thread
Modern style




Upper Ball Joint Boot $ Inquire X023C3007Z
Original style





REAR SUSPENSION



Lotus 41 carrier housing
Carrier Housing, L/H $ 695.00 X023D0055B
Carrier Housing, R/H $ 695.00 X023D0044B
Early models


Carrier Housing Bearing $ Inquire G023D6017Z
6208 - 2RS1




Spacer - Bearing to Bearing $ 12.50 X023D0148B




Spacer - Outer Bearing to Hub $ 10.00 X023D0186PL
Plated



Lotus 41 driveshaft
Outboard Drive Shaft $ 695.00 X023D0003Z
Chrome Moly steel
Rolled thread



Lotus 41 rear shaft yoke
Rear Shaft Yoke - 10 Spline $ 271.00 A023D7005Z-CM
Forged in the U.S.A.
Chrome Moly steel
Magnetic Particle Inspected (MPI)



Lock Nut - Rear Axle Yoke $ 2.65 X023D6019Z
5/8 - 18 UNF thread
Zinc plated
Special thickess


Washer, Rear Axle / Yoke $ 6.15 X023D0048Z
Hardened
For 5/8" diameter bolt

Washer, Rear Axle / Yoke $ 6.40 X023D0048PL
Hardened
Plated
For 5/8" diameter bolt


Universal Joint - w/ grease fitting $ 63.00 X023D6005Z
1300 Series

Universal Joint - w/ grease fitting - Heavy Duty $ 65.00 X023D6005HD
1300 Series

Universal Joint - w/o grease fitting $ 62.65 A023D6005Z
1300 Series

Universal Joint - w/o grease fitting - Heavy Duty $ 67.75 A023D6005HD
1300 Series



Universal Joint Selection Chart

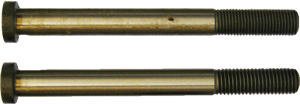

Wheel Stud - Rear - 3.75" Long
Hardened Chrome Moly
Rolled thread
BSF $ 11.25 B023D6015Z
UNF $ Inquire C023D6015Z


Lug Nut - BSF $ 8.65 X023D6000NP
Lug Nut - UNF $ 8.65 A023D6000NP
Silicon bronze


Lug Nut (BSF) $ 8.75 X023D6000Z
Chrome plated
Whitworth




Clevis Bolt Measurement




Clevis Bolt, Upper Link $ 26.75 X041D0190W
3/8 - 24 UNF thread    Length - 4.312"


Clevis Bolt, Upper Link $ Inquire X041D0190PL
3/8 - 24 UNF thread    Length - 4.312"


Clevis Bolt $ 92.50 C041D0190Z
3/8 - 24 UNF thread    Length - 4.875"
Chrome Moly steel
Plated
Rolled thread

Clevis Bolt $ 112.50 A041D0190Z
3/8 - 24 UNF thread    Length - 3.875"
Chrome Moly steel
Plated
Rolled thread

Clevis Bolt, Lower Link $ 82.50 B041D0190Z
7/16 - 20 UNF thread    Length - 4.750"
Chrome Moly steel
Plated
Rolled thread


Spherical rod end Spherical Rod End - Wishbone $ 115.25 A023D6003W
3/8 Diameter    5/8 - 18 UNF thread
2.500" Length
Chrome Moly steel
Rolled thread
TFE Liner
Made in U.S.A.



Spherical Rod End Measurement





Caliper Mount $ 92.50 A023D6021Z
Early models

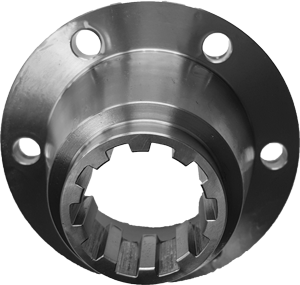

Rear Shaft CV Flange - 10 Spline $ 245.00 B023D7005Z
Chrome Moly steel






TRANSAXLE





Vertical Mk $ 516.00 X027Q6114Z
1-3/4"




Stub Axle Bearing - Mk9 $ Inquire G023F6126Z
4207 - ATN9



Differential Bearing - Mk8 $ Inquire G023F6024F8
11315 / 11162



Differential Bearing - Mk9 $ Inquire G023F6024F9
11300 - 11162




Mounting Bush $ 23.50 X023D6011Z
7/16 I.D. x 15/16 O.D. x 1-3/8 Long




Input Shaft   11.100" Ford / Mk $ 593.00 X027F6050Z





STEERING




Steering Column Clamp $ 17.85 X023H6038Z




Steering Wheel - 11" Diameter $ Inquire
Thick grip, black spokes



Steering Wheel - 11" Diameter $ Inquire
Thick grip



Steering Wheel - 12" Diameter $ Inquire
Thick grip




Steering Wheel Hub $ 59.85 X023H0021Z






Ball Joint, Steering Arm (Tie Rod End) $ 41.50 X023H6007W





Steering Column Bush $ 12.65 X023H6031W




Steering Column Coupling Bushing $ 2.70ea X023H6003Z
8 required per coupling




Steering Rack Bellows $ 20.15 A023H6027Z




Steering Rack Locking Washer $ 5.25 X023H5003Z
Plated



Steering Column $ N.L.A. X023H6055NP
23 - 3/4" Length



Steering Rack $ 398.50 X051H2703Z
Rolled threads
22" overall length


Steering Rack $ Inquire X051H2703HT
Rolled threads
Heat treated teeth
22" overall length




BRAKE




Rotor, Front & Rear $ 270.00 A023J0001Z
10.570" Diameter



Lotus Caliper, Front - AR - L/H $ 795.00 X023J6102HC
Caliper, Front - AR - R/H $ 795.00 X023J6103HC
Less pads
Resin impregnated, hard coated




Caliper Plug - AR $ 28.50 X023J8101Z



O-Ring, Caliper Plug - AR $ 0.65 X023J8102Z



Caliper Piston - AR (2 inch diameter) $ 35.50 X023J6135Z
Aluminum
Hard anodized coated



O-Ring, Caliper Piston - AR (2 inch diameter) $ 18.00 X023J6151Z





Caliper Bleeder Screw $ 7.25 X023J6057S



Bleeder Screw Cap $ 1.10 A023J6034Z




Brake Pad Retainer $ 5.00 X023J3001Z
Stainless steel



Pad Retaining Kit $ 4.80 X023J9500Z
2 Nuts
2 Studs
2 Lockwashers

Pad Retaining Kit - w/o Studs $ 1.75 X023J9501Z
2 Nuts
2 Lockwashers



Balance Bar Assembly $ 253.00 X023T0009Z
Individual pieces available




Balance Bar Clevis $ 66.50 X023J1533Z
Nickel plated


Balance Bar $ 27.75 X023J1530Z
Chrome Moly steel
Rolled threads



Balance Bar Assembly drawing





Most parts are aftermarket reproductions and no inference is intended that ny were manufactured by the original manufacturer
