FRONT SUSPENSION



Lotus vertical link

Vertical Link - R/H $ 340.00 X023C6005Z
Vertical Link - L/H $ 340.00 X023C6006Z




Lotus verical link

Vertical Link - R/H, w/o grease holes $ Inquire A023C6005Z
Vertical Link - L/H, w/o grease holes $ Inquire A023C6006Z




Lotus vertical link

Vertical Link - R/H - Mk23C $ Inquire X019C6005Z
Vertical Link - L/H - Mk23C $ Inquire X019C6006Z
F1 Configuration



Lotus vertical link

Vertical Link - R/H - Mk23C, w/o grease holes $ Inquire A019C6005Z
Vertical Link - L/H - Mk23C, w/o grease holes $ Inquire A019C6006Z
F1 Configuration



Upper ball joint
Upper Ball Joint $ 136.50 B023C6007Z
5/8 - 18 UNF thread
Modern style



Ball joint boot Upper Ball Joint Boot $ Inquire X023C3007Z
Original style




Grease Cap $ 7.15 X036C6013Z



Bearing 07100s
Wheel Bearing, Inner $ Inquire G023C6016Z
07100S / 07210X



Bearing 08125
Wheel Bearing, Inner $ Inquire G019C6017Z
08125 / 08231
F1 Configuration



Wheel Bearing - Outer $ Inquire G019C6016Z
03062 / 03162




Wheel Bearing, Outer $ Inquire X019C6016Z
17520 / 17580
F1 Configuration


Bearing seal
Bearing Seal $ Inquire G023C6018Z



Axle $ 60.00 A018C6008Z
Chrome Moly steel
Rolled threads


Axle $ 110.00 X019C6008Z
F1 Configuration
Chrome Moly steel
Rolled threads


Retaining nut
Retaining Nut, Axle $ 0.90 X023C6011Z





Hub $ 330.00 A018C6014Z
Chrome Moly steel




Hub $ 350.00 X019C6014Z
Chrome Moly steel
F1 Configuration




Retaining nut
Retaining Nut, Front Axle Bearing $ 1.75 X036C6010Z



Retaining nut
Retaining Nut, Front Axle Bearing $ 2.00 X036C6010PL
Plated


D washer
'D' Washer - Unplated $ N.L.A. X023C6009Z
'D' Washer - Plated $ 4.90 X023C6009PL



Front Wheel Stud
BSF $ 11.75 X051D6015Z
UNF $ 23.75 A051D6015Z
1.79" Long
Rolled threads
Head does not have flat like original Lotus part. If
     needed, it must be machined or ground.


WHEEL STUDS - Mk19F1
BSF/BSF $ 15.50 A023C6015Z
3.719 " OAL
Rolled threads
Chrome Moly steel

UNF/UNF $ Inquire C023D6015Z
3.969 " OAL
Rolled threads
Chrome Moly steel


Lug nut Lug Nut (BSF) $ 8.65 X023D6000NP
Lug Nut (UNF) $ 8.65 A023D6000NP
Silicon bronze



Brake Rotor Retaining Nut (UNF) $ 4.75 A023C7050Z
F1 Configuration

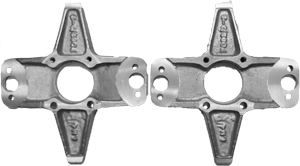

Brake Cross - L/H $ Inquire G018C6021Z
Brake Cross - R/H $ Inquire G018C6022Z



Upper trunnion seal
Upper Trunnion Seal $ 3.40 A023C6047Z
Not included in Trunnion Kit below



Trunnion
Trunnion, R/H $ 45.45 X023C6025Z
Trunnion, L/H $ 45.45 X023C6026Z



Trunnion kit
Trunnion Kit $ 17.75 X023C6012Z




Sway Bar Mount $ Inquire X023C0005Z
Spherical rod end



Wishbone bush Wishbone Bush $ 14.95 X023C6004Z
3/8" I.D. x 3/4" O.D. x 1-7/32" Long
Chrome Moly inner sleeve



Hub Cap - Wobbly $ 16.50 A023G0002Z
Nickel plated


Hub cap seal
Hub Cap Seal $ 1.30 X023G6018Z






REAR SUSPENSION

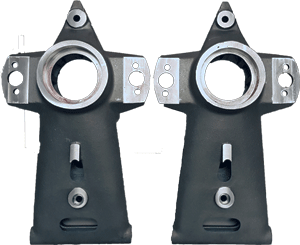

Carrier Housing, L/H $ 350.00 G018D0055Z
Carrier Housing, R/H $ 350.00 G018D0044Z
Aluminum





Carrier Housing, L/H - R/H $ 575.00 X019D066B
Magnesium
F1 Configuration
Mag. Chromate coated



Carrier Housing Bearing $ Inquire G023D6017Z
6208 - 2RS1
F1 Configuration inner
FJ Configuration inner & outer


Carrier Housing Bearing $ Inquire GB06C6017Z
6010 - 2RS1
F1 Configuration outer




Spacer - Bearing to Bearing $ 12.50 X023D0148B
FJ Configuration



Spacer - Outer Bearing to Hub $ 10.00 X018D0186Z
Not originally used on FJ configuration
Chrome Moly steel
Plated



Spacer - Outer Bearing to Hub $ 15.75 A019D0186Z
Not originally used on F1 configuration



Wheel Stud
BSF $ 10.85 B051D6015Z
UNF $ 11.75 C051D6015Z
2.25" Long
Rolled thread
Chrome Moly steel



Outboard Drive Shaft $ 375.00 B018D0003Z
FJ Configuration
Chrome Moly steel
Rolled thread




Outboard Drive Shaft $ 450.00 A019D0003Z
F1 Configuration
Chrome Moly steel
Rolled thread




Rear Shaft Yoke - 10 Spline $ N.L.A. X023D7005Z
Light duty




Rear Shaft Yoke - 10 Spline $ 271.00 A023D7005Z-CM
Forged in the U.S.A.
Chrome Moly steel
Magnetic Particle Inspected (MPI)



Lock nut rear axle Lock Nut - Rear Axle Yoke $ 2.65 X023D6019Z
5/8 - 18 UNF thread
Zinc plated


Washer, Rear Axle / Yoke $ 6.40 X023D0048PL
Hardened
Plated
For 5/8" diameter bolt


Wheel spacer
Wheel Spacer - Rear (6061-T6 Aluminum) $ 14.15 X023D5000Z
.060" thick



Wheel spacer Wheel Spacer - Rear (6061-T6 Aluminum)
.250" thick $ 45.00 F023D5000Z
.312" thick $ 46.00 H023D5000Z
.438" thick $ 48.50 A023D5000Z
.500" thick $ 53.00 B023D5000Z
.625" thick $ 51.50 C023D5000Z



Flanged Yoke - 1300 Series $ Inquire X018D6007Z
Uses 3/8 inch bolt
2 inch x 3/8 inch





Universal Joint - w/o grease fitting $ 50.40 C023D6005Z
1140 Series





Universal Joint Selection Chart





Lug nuts Lug Nut (BSF) - Mk18/22/23/23C $ 8.65 X023D6000NP
Lug Nut (UNF) - Mk18/22/23/23C $ 8.65 A023D6000NP
Silicon Bronze


Lug Nut (BSF) $ 8.75 X023D6000Z
Chrome plated
Whitworth


Spherical Rod End $ 115.25 A023D6003W
3/8" Diameter    5/8 - 18 UNF thread
2.500" Length
Chrome Moly steel
Rolled thread
TFE Liner
Made in U.S.A.



Spherical Rod End Measurement




Radius Arm Bush $ 10.35 X023D6001Z
3/8" I.D. x 3/4" O.D. x 7/8" Long
Chrome Moly steel inner sleeve


Lower Wishbone Bush $ 23.50 X023D6011Z
7/16" I.D. x 15/16" O.D. x 1-3/8" Long
Chrome Moly steel inner sleeve



Hub Cap - Wobbly $ 16.50 A023G0002Z
Nickel plated



Hub Cap Seal $ 1.30 X023G6018Z

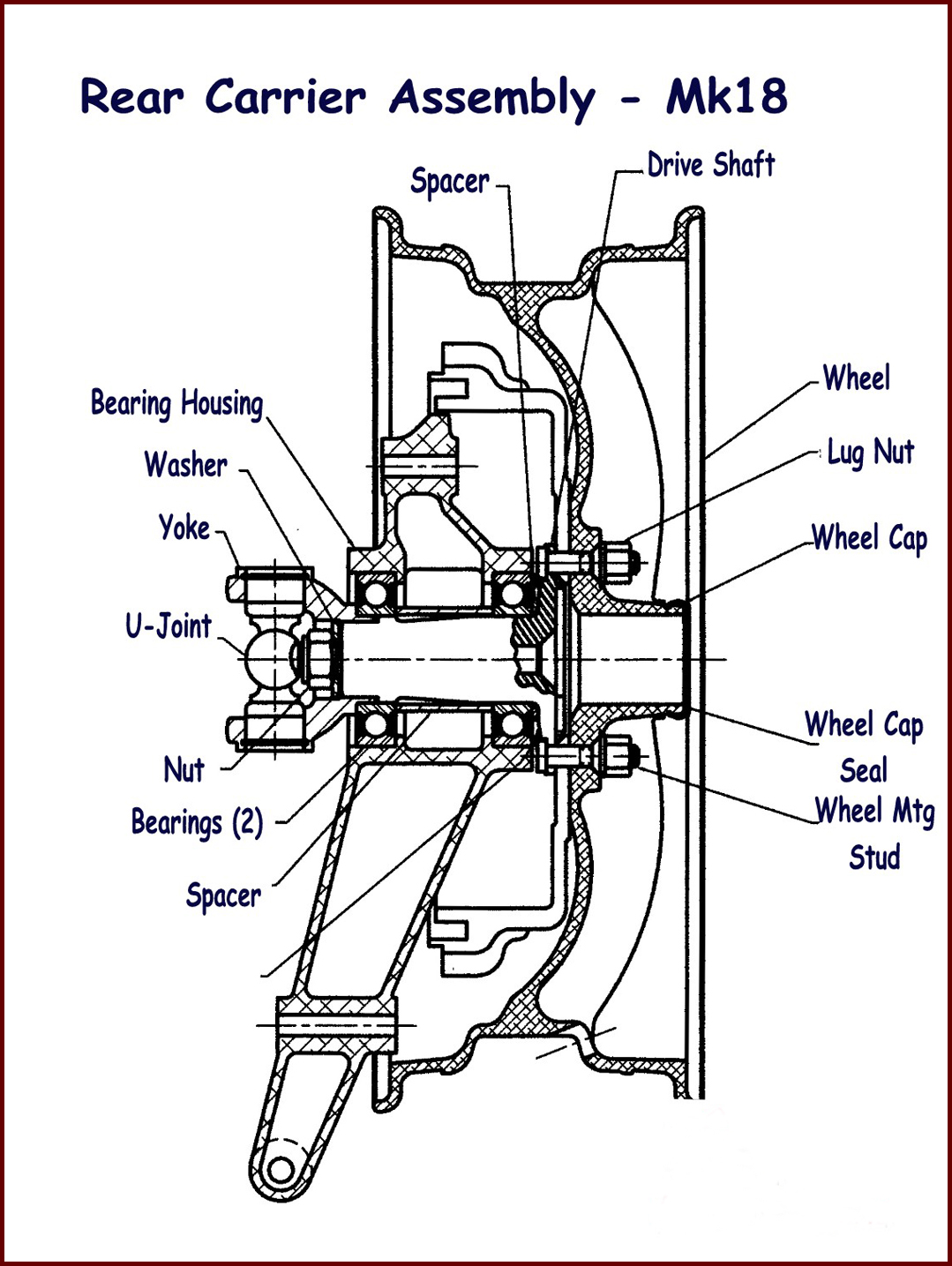

Rear Carrier Assembly Drawing







TRANSAXLE





Lotus / Renault type 318 gearbox with Hewland $ 12000.00
    conversion

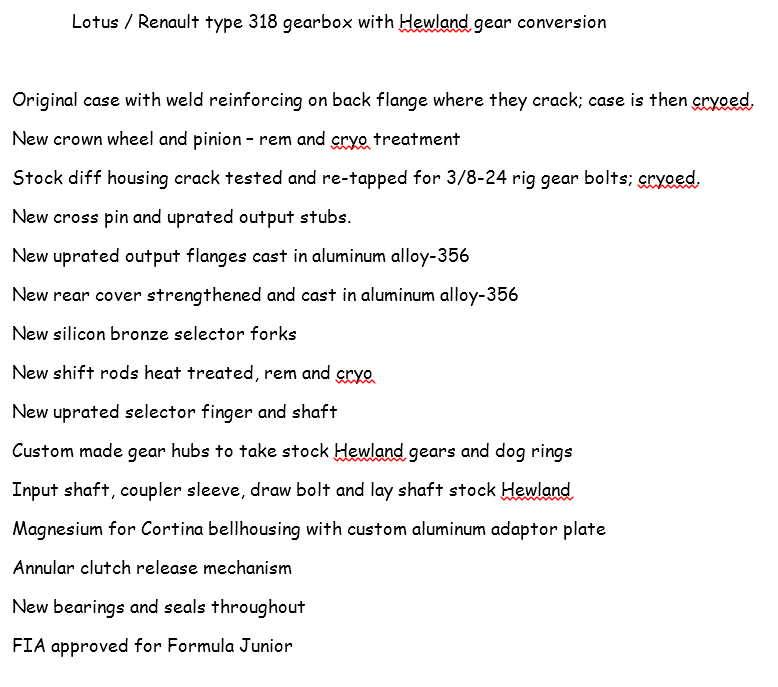

Lotus / Renault Gearbox details

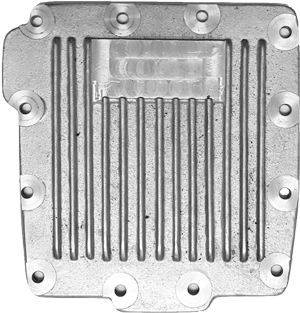

Top Cover - Renault Trnsaxle $ 150.00
Aluminum

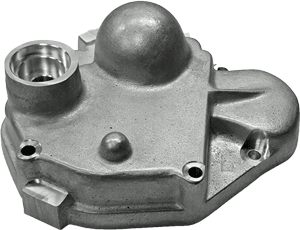

Rear Cover - Renault Transaxle $ 250.00
Aluminum

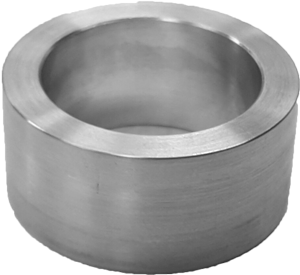

Lay Shaft Bearing Adapter $ 1.00
Included w/ Rear Cover
Aluminum



Side Bell - Renault Transale $ 330.00 G018F8888Z
Aluminum
Retaining Ring and O-Ring not included




Retaining Ring, 72 mn internal - Renault Side Bell Bearing $ 3.00 G018F6006Z





O-Ring, Renault Side Bell $ 1.50 G018F7001Z

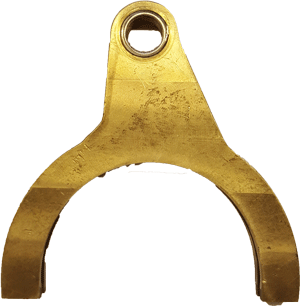

Shift Fork 1-2 Gear $ 195.00 G018F7231Z

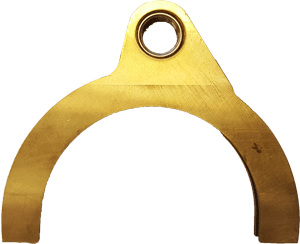

Shift Fork 3-4 Gear $ 195.00 G018F7230Z



Output Shaft - Renault $ 210.00 G018R0035Z
Type 318 & 330
20 tooth spline
Chrome Moly steel
Inner bore is made to accept 1 diameter engine freeze  plug to prevent oil leakage
  Special spline configurations are available



Differential Gear $ 210.00 X018R6039Z





Pin, Gear Pinion $ 18.75 A018R6036Z




Output Bearing - Renault $ Inquire GBT18D6003Z
6207 - 2RS1
High temperature side seals




Diff. Carrier Bearing - Renault $ Inquire GEV7D6003Z
30206





Shift Pattern Plate (A) - Lotus $ 6.50 A018F2075Z
Plastic, 2-1/4" square





Shift Pattern Plate (B) - Lotus $ 6.50 B018F2075Z
Plastic, 2-1/4" square





Shift Pattern Plate (C) - Lotus $ 6.50 C018F2075Z
Plastic, 2-1/4" square





Shift Pattern Plate (D) - Lotus $ 6.50 D018F2075Z
Plastic, 2-1/4" square






STEERING





Steering Wheel Hub $ 59.85 X023H0021Z




Steering Wheel - 11" Diameter $ Inquire
Thick grip, black spokes




Steering Wheel - 11" Diameter $ Inquire
Thick grip




Steering Wheel - 12" Diameter $ Inquire
Thick grip





Steering Column Bush $ 12.65 X023H6031W




Steering Rack Bellows $ 20.15 A023H6027Z





Ball Joint, Steering Arm (Tie Rod End) $ 41.50 X023H6007W




Shim, Steering Rack Tie Rod Ball
.010" Thk - Carbon steel $ 2.95 X023H1061Z
.002" Thk - Carbon steel $ N.L.A. X023H1060Z

Shim, Steering Rack Tie Rod Ball
.010" Thk - Stainless steel $ 3.15 X023H1061S
.002" Thk - Stainless steel $ 3.20 X023H1060S



Steering Rack Locking Washer $ 5.25 X023H5003Z
Plated


Steering Rack $ 398.50 X051H2703Z
Rolled threads
22" overall length

Steering Rack $ 447.50 X051H2703HT
Rolled threads
Heat treated
22" overall length

Steering Rack Housing Extension Retaining Screw $ 0.25 X022H9002Z
Cross drilled for safety wire
Plated



Steering Column Coupling Assy - Used $ 32.50 X023H6002W




Steering Arm - L/H $ 104.65 X022H6001Z
Steering Arm - R/H $ 104.65 X022H6000Z
Forged Chrome Moly steel
Tapered hole
7" overall length
Made in U.S.A.


Steering Arm - L/H $ 104.65 A022H6001Z
Steering Arm - R/H $ 104.65 A022H6000Z
Forged Chrome Moly steel
Straight hole
7" overall length
Made in U.S.A.



Tie Rod $ N.L.A. X023H0005Z





BRAKE




Balance Bar Assembly $ 253.00 X023T0009Z
Individual pieces available




Balalnce Bar Assembly Drawing




Balance Bar $ 27.75 X023J1530Z



Balance Bar Clevis $ 66.50 X023J1533Z
Nickel plated



Caliper Mounts, Front - L/H $ 150.00 A023J6021Z
Caliper Mounts, Front - R/H $ 150.00 A023J6022Z
F1 Configuration



Calipers Caliper, Front - L/H - AR $ 795.00 X023J6102HC
Caliper, Front - R/H - AR $ 795.00 X023J6103HC
F1 Configuration
Resin impregnated
Hard coated



Caliper Plug - AR $ 28.50 X023J8101Z



O-Ring, Caliper Plug - AR $ 0.65 X023J8102Z



Caliper Piston - AR (2 inch dia) $ 35.50 X023J6135Z
Aluminum
Hard anodized coated


O-Ring, Caliper Piston - AR $ 18.00 X023J6151Z
2 inch I.D.




Caliper, Rear - L/H - NR $ 890.00 X023J6002HC
Caliper, Rear - R/H - NR $ 890.00 X023J6003HC
F1 Configuration
Resin impregnated, hard coated


Caliper Plug - NR $ 27.00 X023J8001Z



O-Ring, Caliper Plug - NR $ 0.50 X023J8002Z



Caliper Piston - NR (1-1/2 inch dia) $ 36.00 X023J6035Z
Aluminum
Hard anodizing coated



O-Ring, Caliper Piston - NR $ 18.00 X023J6051Z
1-1/2 inch I.D.



Caliper Bleeder Screw $ 7.25 X023J6057S



Bleeder Screw Cap $ 1.10 A023J6034Z




Tube Assy, Cross-over - AR/NR $ 19.75 X023J8003Z




Brake Pad Retainer $ 5.00 X023J3001Z
Stainless steel



Pad Retainer Kit $ 4.80 X023J9500Z
2 Nuts
2 Studs
2 Lockwashers


Pad Retainer Kit w/o Studs $ 1.75 X023J9501Z
2 Nuts
2 Lockwashers



Rotor, Front $ 270.00 A023J0001Z
F1 Configuration
10.570" Diameter





COOLING




Swirl pot cap
Swirl Pot Cap $ 47.00 X023K6000Z



Cap O-Ring $ 0.60 X023K7001Z




Swirl Pot Relief Valve Cap $ Inquire X019K7004Z



Cap Sealing Washer $ 3.95 X023K7003Z



Bleed-back valve
Bleed-back Valve Assembly $ 42.50 X023K7005
Supplied disassembled



Bleed-back Valve Gasket $ 2.60 X023K7002Z




Pressure Relief Spring $ 3.65 X023K7006Z





ELECTRICAL




Decal, Lucas Coil - SA 12 $ N.L.A. X023M2075Z



Decal, Lucas Coil - HA 12 $ 6.30 A023M2075Z
