Lola T60 |
||||
FRONT SUSPENSION |
||||
 |
||||
| Front Upright | $ | P.O.R. | XL06C6005B | |
| Magnesium | ||||
| Magnesium Chromate coated | ||||
 |
Front Upright Upper Pin | $ | 195.00 | AL06C7001Z |
| 1/2 UNC thread | ||||
| Chrome Moly steel | ||||
| Rolled thread | ||||
 |
Front Upright Lower Pin | $ | 290.00 | AL06C7002Z |
| 5/8 UNC thread (lower) | ||||
| Chrome Moly steel | ||||
| Rolled thread | ||||
 |
Front Upright Pin Locking Set Screws | $ | 0.80 | XL06C9001Z |
| Cup point | ||||
| #10-24 UNC thread | ||||
| 3/8 inch long | ||||
 |
||||

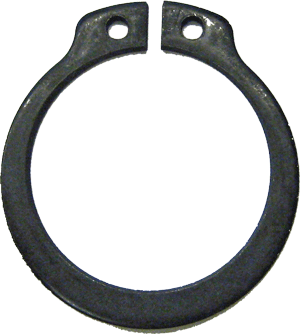

| Circlip | $ | 4.10 | AL06C6011Z | |
| 1-1/2" external | ||||
 |
||||
| Front Axle Adapter | $ | 290.00 | AL06C6003Z | |
| Chrome Moly steel | ||||
 |
Front Axle | $ | 79.25 | BT21C6008Z |
| Chrome Moly steel | ||||
| Rolled threads | ||||
 |
||||
| Retaining Nut, Axle | $ | 0.90 | X023C6011Z | |
| Nyloc | ||||
 |
||||

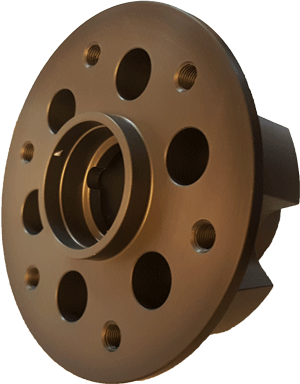

| Front Hub | $ | N.L.A. | BL06C6014Z | |
| Aluminum | ||||
| Hard coated | ||||
 |
||||
| Wheel Bearing - Inner | $ | Inquire | G036C6042Z | |
| L44610 / L44669 | ||||
 |
||||
| Wheel Bearing - Outer | $ | Inquire | G036C6041Z | |
| LM11910 / LM11949 | ||||
 |
Wheel Stud Nut | $ | 21.60 | AL06G6015Z |
| 3/8 - 24 UNF thread | ||||
| Chrome Moly steel | ||||
 |
Wheel Stud Nut Washer | $ | 0.25 | AL06G5015Z |
| 25/64" I.D. x 5/8" O.D. x .030" Thk | ||||
| Stainless steel | ||||
 |
||||
| Inner Bearing Seal | $ | Inquire | G023C6018Z | |
 |
||||
| 'D' Washer (large) | $ | 13.40 | X050C6000Z | |
| Plated | ||||
 |
||||
| Retaining Nut, Front Axle Bearing | $ | 1.75 | X036C6010Z | |
 |
||||
| Retaining Nut, Front Axle Bearing | $ | 2.00 | X036C6010PL | |
| Plated | ||||
 |
||||
| Grease Cap, Front Hub | $ | 9.00 | X050C6013Z | |
REAR SUSPENSION |
||||
 |
||||

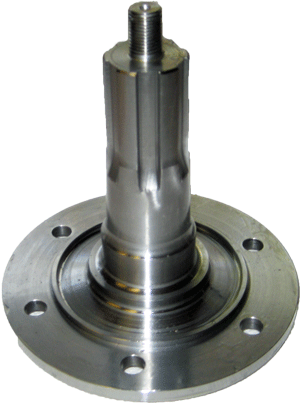

| Rear Axle | $ | 1000.00 | BL06D0003Z | |
 |
||||

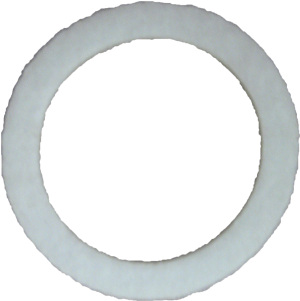

| Bearing Seal, Inner | $ | 3.75 | XL06D6018Z-Rev0 | |
| 2.0" I.D. x 2-5/8" O.D. | ||||
|
||||
| Bearing Seal, Inner | $ | 3.75 | XL06D6018-Rev1 | |
| 2-1/8" I.D. x 2-5/8" O.D. | ||||
|
||||
| Bearing Seal, Outer | $ | 3.75 | AL06D6013Z | |
| 2-1/4" I.D. x 2-13/16" O.D. | ||||
 |
||||
| Retainer, Inner Felt Seal | $ | P.O.R. | AL06D5018Z | |
| .020" Thk | ||||
 |
||||
| Retainer, Outer Felt Seal | $ | P.O.R. | AL06D5013Z | |
| .020" Thk | ||||
 |
Washer, Rear Axle | $ | 6.40 | XL06D0048Z |
| .565" I.D. x 1.435" O.D. x .200" Thk | ||||
| Chrome Moly steel | ||||
| Plated | ||||
Other Lola Models |
||||
 |
||||
| Wheel Mounting Stud | $ | Inquire | AL14C6015Z | |
| 4.00" Long | ||||
 |
||||
| Wheel Mounting Stud | $ | 22.50 | AL14D6015Z | |
| 4.50" Long | ||||
 |
||||
| Yoke, REar Ale - T200, T202 | $ | 500.00 | BL20D7005Z | |
| 1300 Series U/J | ||||
 |
Yoke, Rear Axle - T210, T212, T290 | $ | 295.00 | AL29D7005Z |
| 1300 Series U/J | ||||
| Forged in the U.S.A. | ||||
| Chrome Moly steel | ||||
| Magnetic Particle Inspected (MPI) | ||||
 |
Wheel Nuts | $ | 97.50ea | |
| Center lock - Fits most models | ||||
| 2-11/16 inch hex | ||||
| Tapered seat | ||||
| 6061 T-6 Aluminum hard anodized | ||||
 |
||||

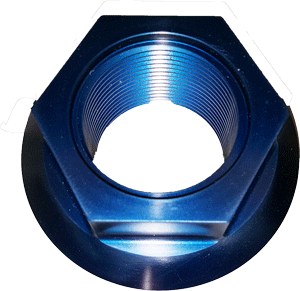

| Wheel Nut - Right | $ | 153.25 | XL97G0006B | |
| Left hand thread (1-1/2 - 12 UNS-2B) | ||||
 |
||||

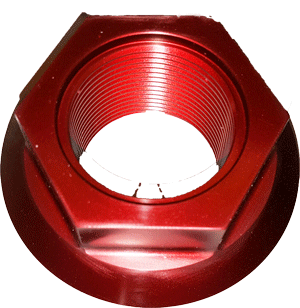

| Wheel Nut - Left | $ | 153.25 | XL97G0007R | |
| Right hand thread (1-1/2 - 12 UNS-2B) | ||||
 |
||||
| Wheel Nut - Right | $ | 153.25 | XL97G0006G | |
| Left hand thread (1-1/2 - 12 UNS-2B) | ||||
 |
||||
| Rotor, Front - Mk1 | $ | 259.00 | X023J6008Z | |
| 9.570" Diameter | ||||
 |
||||

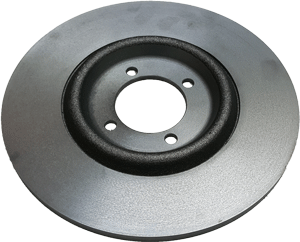

| Rotor, Rear - Mk1 | $ | 230.00 | X014J0001Z | |
| 9.570" Diameter | ||||
 |

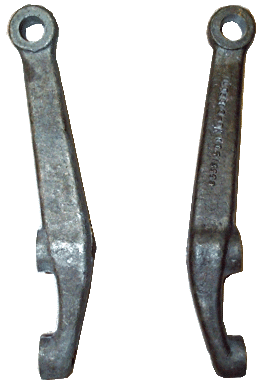

Steering Arm - L/H | $ | 104.65 | X022H6001Z |
| Steering Arm - R/H | $ | 104.65 | X022H6000Z | |
| Forged Chrome Moly steel - Made in U.S.A. | ||||
| Tapered hole | ||||
| 7" Overall length | ||||
| Mk1 | ||||
Most parts are aftermarket reproductions and no inference is intended that any were manufactured by the original manufacturer. |
||||
