FRONT SUSPENSION





Vertical Link - L/H - Mk4/5 $ 305.00 X036C6043Z
Vertical Link - R/H - Mk4/5 $ 305.00 X036C6044Z





Vertical Link - L/H, w/o grease holes $ 360.00 A036C6043Z
Vertical Link - R/H, w/o grease holes $ Inquire A036C6044Z




Axle - Mk5 $ 79.25 BT21C6008Z
Chrome Moly steel
Rolled threads


Axle - Mk7/7S $ 66.50 AEV7C6008Z
Chrome Moly steel
Rolled threads

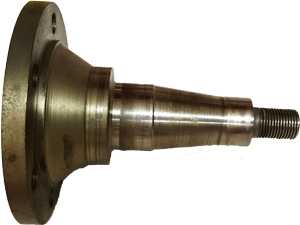

Axle - Mk8 $ Inquire XEV8C6008Z
Chrome Moly steel
Rolled thread




Hub $ 325.00 AEV7C6014Z
Chrome Moly steel




Upright - Mk7/7S $ 630.00 AEV7C6005BA
Includes inserts
Mag. Chromate coated



Insert - Front Upright $ 10.00 AEV7C7001Z
Silicon Bronze
Included with Front Upright (2)



Grease Cap $ 5.95 X036C6013Z




Seal, Outer Front Wheel Bearing, Mk7/7S $ 15.10 GEV7C6018Z




Upper Trunnion Seal - Mk5 $ 3.40 A023C6047Z
Not included in Trunnion Kit below




Trunnion, R/H - Mk5 $ 45.45 X023C6025Z
Trunnion, L/H - Mk5 $ 45.45 X023C6026Z




Trunnion Kit - Mk5 $ 17.75 X023C6012Z





Upper Wishbone $ Inquire GEV7C0001Z
Plated




Lower Wishbone - L/H $ Inquire GEV7C0022PL
Lower Wishbone - R/H $ Inquire GEV7C0023PL
Plated



Wheel Stud $ 24.75 AEV4C6015Z
2.135" Long
7/16 - 20 thread
Elva Courier steel and Magnesium wheels
Plated


Wheel Stud - Front
3.250" Long $ 15.25 XEV7C6015Z
3.375" Long $ 18.65 AEV7C6015Z
3.875" Long $ P.O.R. AEV7C6015Q(L)
4.875" Long $ 14.75 BEV7C6015Z
Chrome Moly steel
Rolled threads

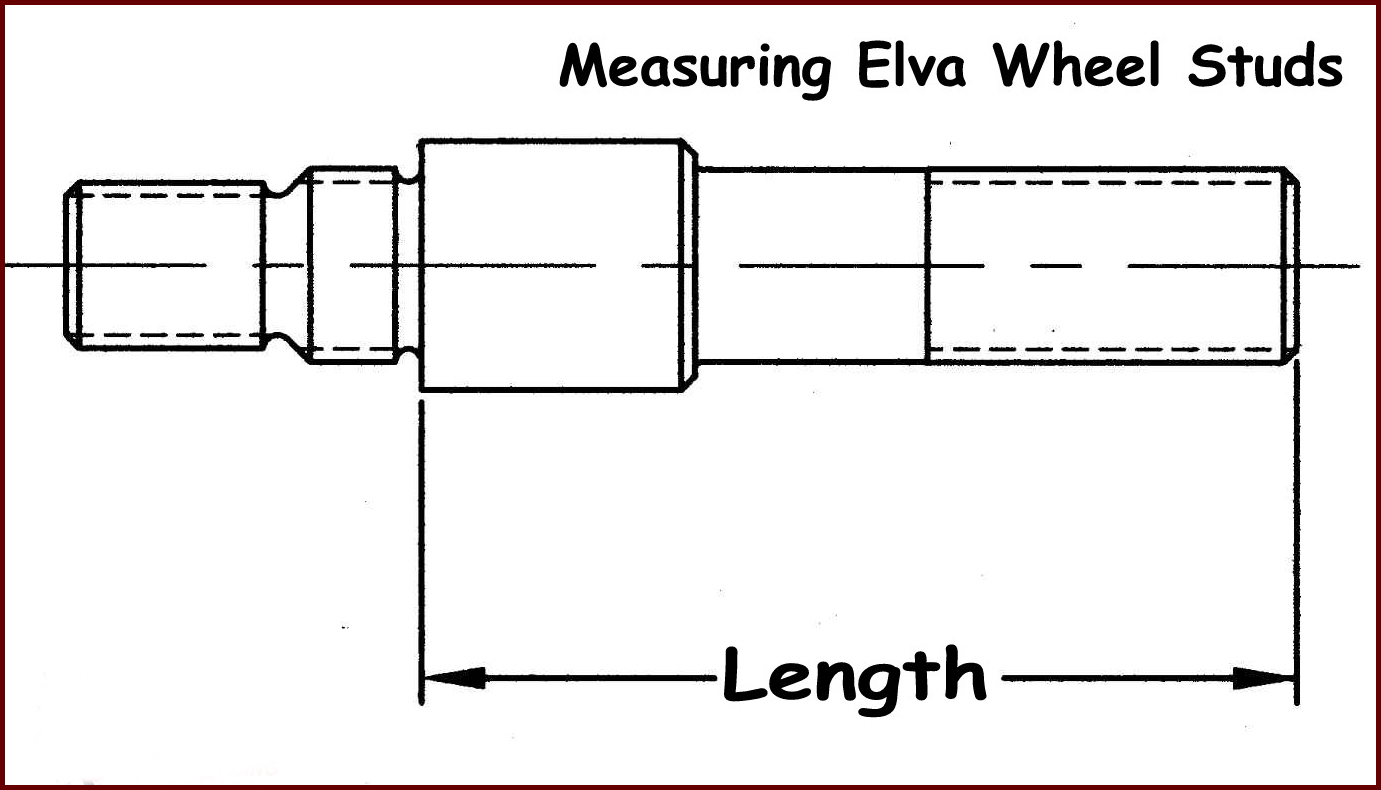

Wheel Stud Length Measurement




Shim Kit - Front Wheel Bearings $ 11.00 AEV7C1622Y
(2) .002" / (2) .005" / (2) .010"
Shims can be purchased individually


Lug Nut $ 7.85 XB06G6000W
3/8" thread
Two pice w/ floating flange


Lug Nut $ 7.50 AEV5G6000W
7/16" thread
Two pice w/ floating flange


Hub Retaining Locknut $ 1.50 A023D6019Z
5/8 - 18 UNF thread
Zinc plated
Special thickness


Washer - Hub to Axle $ 6.15 X023D0048Z
Hardened
For 5/8" diameter bolt

Washer - Hub to Axle $ 6.40 X023D0048PL
Hardened
For 5/8" diameter bolt
Plated



Insert - 13" Wheel $ 7.75 XEV7G6019Z



Insert - 15" Wheel $ 7.75 XEV5G6019Z




Bearing to Bearing Spacer, Mk7/7S $ 29.40 XEV7C0148B
Chrome Moly steel




Wheel Bearing - Outer, Mk7/7S $ Inquire G023C6017Z
07100S / 07210X




Wheel Bearing - Inner, Mk7/7S $ Inquire G023C6016Z
03062 / 03162




Wheel Bearing - Outer, Mk8 $ 12.10 XEV7D6017Z
LM48548 / LM48510

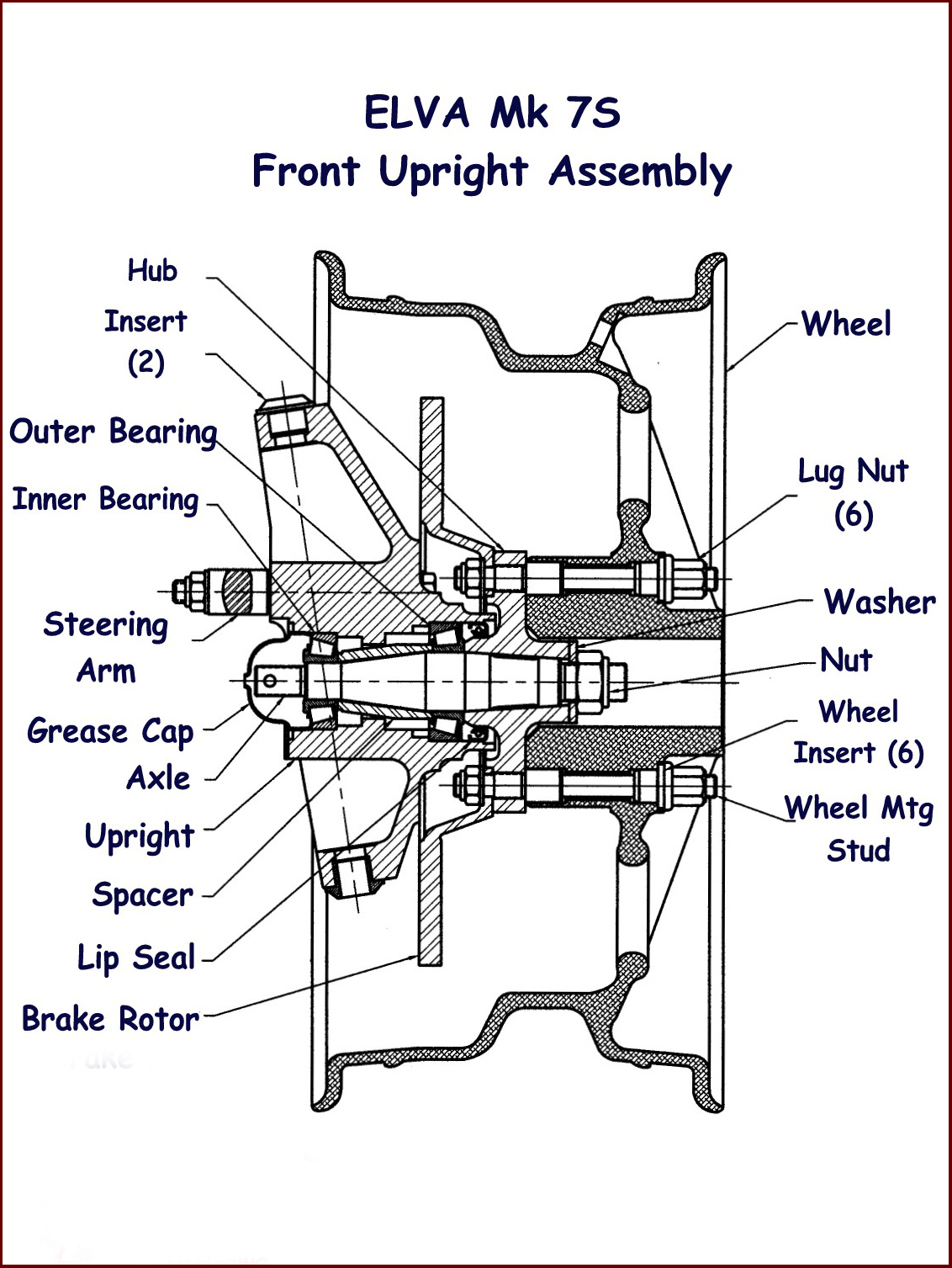

Front Upright Drawing






REAR SUSPENSION




Outboard Drive Shaft $ 528.00 AEV7D0003Z
Chrome Moly steel
Rolled thread

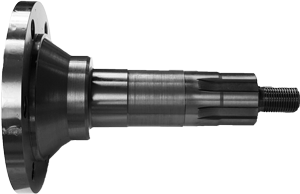

Outboard Drive Shaft - Mk8 $ 375.00 AEV8D0003Z
Chrome Moly steel
Rolled thread





Splined Yoke - Elva (only 1 in stock) $ 195.00 XEV7D7005Z





Splined Yoke $ 235.00 XEV7D7005Z-CM
Forged in the U.S.A.
Chrome Moly steel
Magnetic Particle Inspected (MPI)

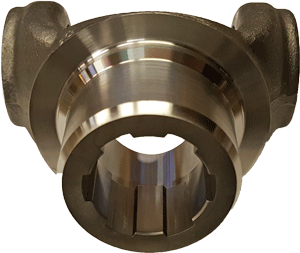

Splined Yoke - Mk8 $ 227.75 XEV8D7005Z
Forged in the U.S.A.
Chrome Moly steel
Magnetic Particle Inspected (MPI)



Lock nut rear axle Lock Nut - Rear Axle Yoke $ 2.65 X023D6019Z
5/8 - 18 UNF thread
Zinc plated


Washer, Rear Axle / Yoke $ 6.15 X023D0048Z
Hardened
For 5/8" diameter bolt

Washer, Rear Axle / Yoke $ 6.40 X023D0048PL
Hardened
Plated
For 5/8" diameter bolt



Flanged Yoke - 1300 Series $ 38.75 X018D6007Z
Uses 3/8 inch bolt
2 inch x 3/8 inch



U-joint

Universal Joint - w/ grease fitting $ 65.00 X023D6005Z
1300 Series

Universal Joint - w/o grease fitting $ 62.65 A023D6005Z
1300 Series

Universal Joint - w/o grease fitting - Heavy Duty $ 67.75 A023D6005HD
1300 Series

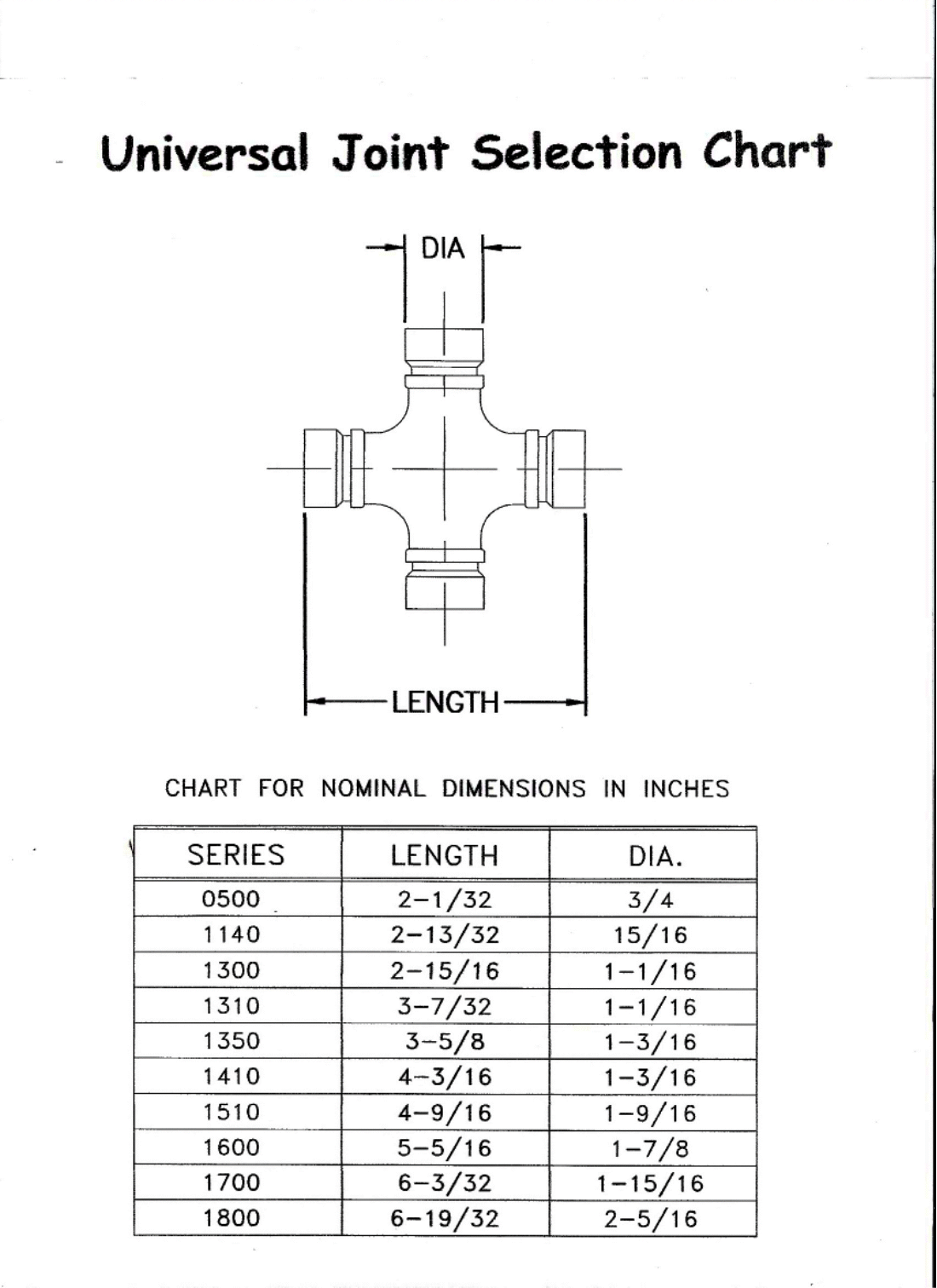

Universal Joint Selection Chart




Wheel Stud - Rear $ 15.70 AEV4D6015Z
2.385"    7/16 - 20 thread
Elva Courier steel and Magnesium wheels
Plated


Wheel Stud - Rear
3.375" Long $ 15.00 XEV7D6015Z
3.875" Long $ 16.75 AEV7D6015Z
4.875" Long $ 19.90 BEV7D6015Z
Chrome Moly steel
Rolled threads


Wheel Mounting Stud $ 14.75 AEV6D6015Z
1.742" Long
Chrome Moly steel
Rolled threads
For 15" wheels


Wheel Stud - Mk8 $ 18.65 XEV8D6015
3.095" Long



Wheel Stud Length Measurement




Shim Kit - Rear Wheel Bearings - Mk7/7S $ 16.75 AEV7D1622X
(4) .0020" / (2) .0050" / (2) .0100"
Stainless steel
Shims can be purchased individually


Lug Nut $ 7.85 XB06G6000W
3/8" thread
Two piece w/ floating flange


Lug Nut $ 7.50 AEV5G6000W
7/16" thread
Two piece w/ floating flange



Bearing to Bearing Spacer - Mk7/7S $ 21.40 AEV7D0148Z
Chrome Moly steel

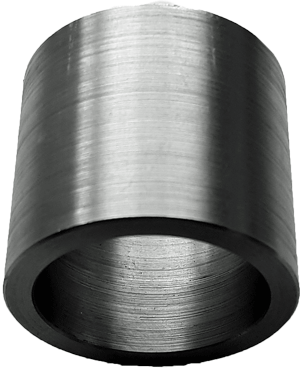

Bearing to Bearing Spacer - Mk8 $ 16.45 XEV8D0148Z
Chrome Moly steel




Rear Carrier Assembly $ 1035.00 AEV7D0066BA
Mag. Chromate coated
Includes lower sleeve

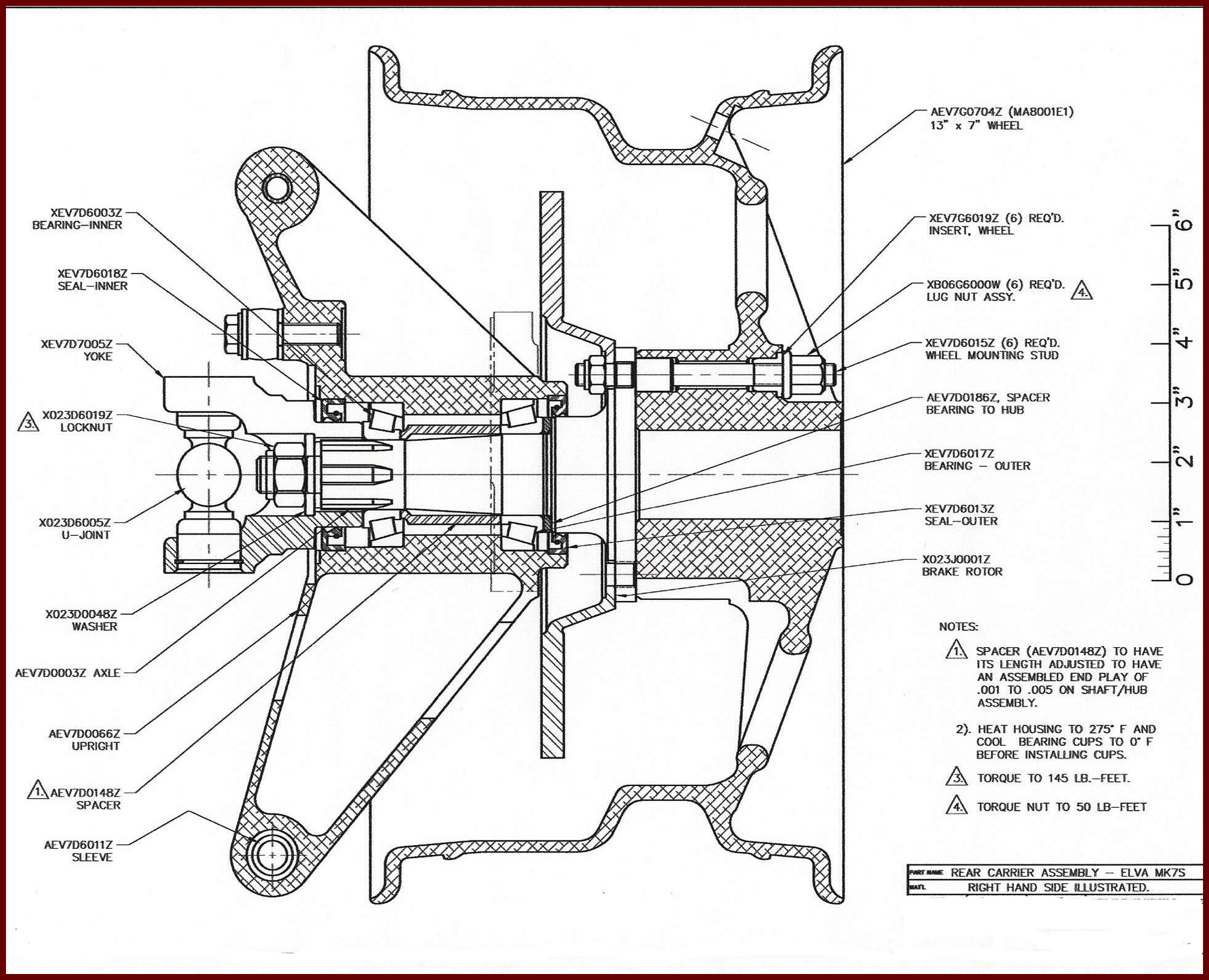

Rear Carrier Assembly Drawing - Elva Mk7S

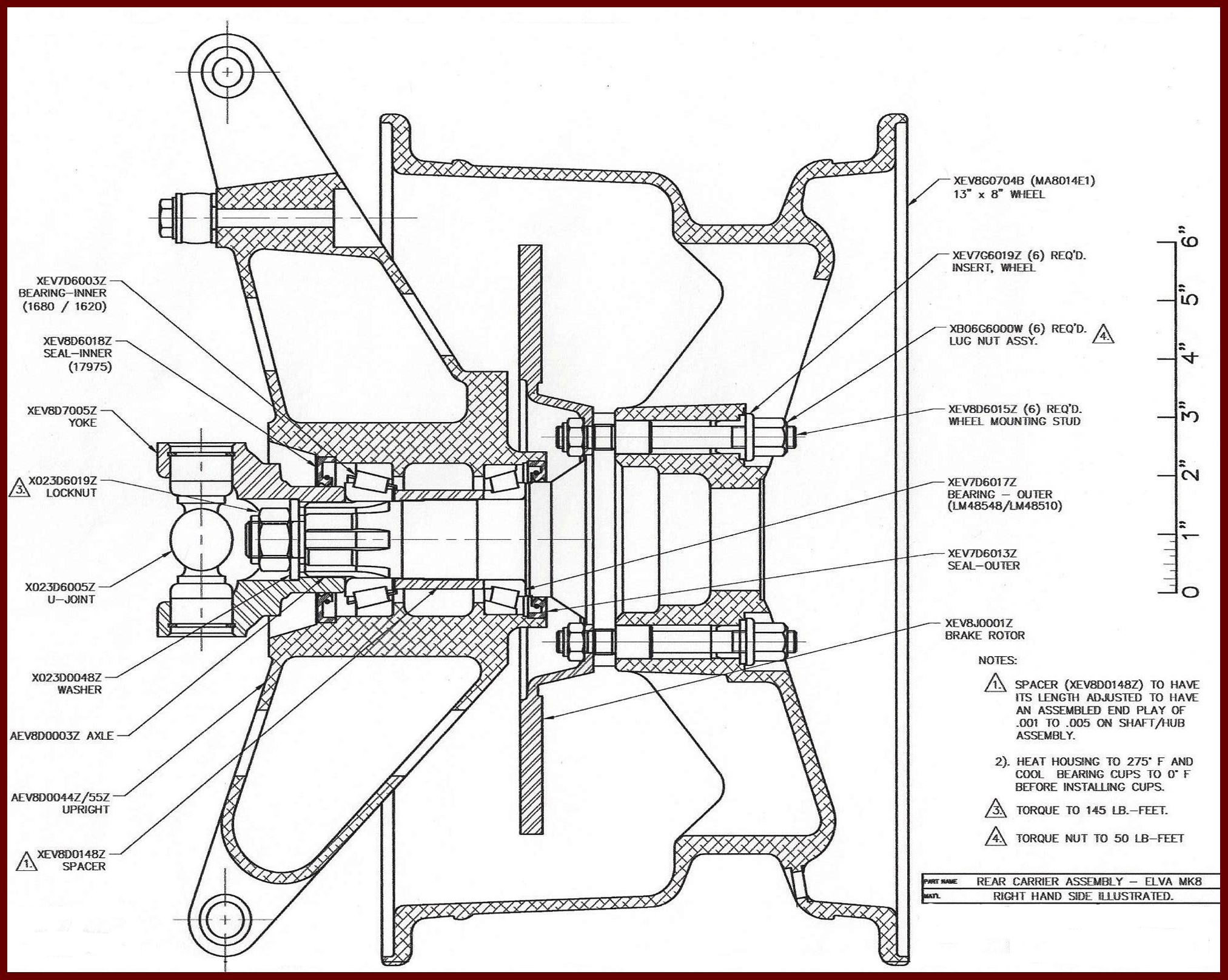

Rear Carrier Assembly Drawing - Elva Mk8





Lower Rear Carrier Sleeve $ 45.00 AEV7D6011Z
Included with Rear Carrier Assembly



Rod, Lower Wishbone $ 40.25 XEV7D0191Z
1/2" Diameter    10-1/2" O.A.L.
1/2 UNF - 1/2 UNF threads
Chrome Moly steel with rolled threads



Bearing - Inner $ Inquire GEV7D6003Z
30206



Bearing - Outer $ 12.10 XEV7D6017Z
LM48548 / LM48510




Inserts - 13" Wheel $ 7.75 XEV7G6019Z




Inserts - 15" Wheel $ 7.75 XEV5G6019Z




Seal, Inner Rear Wheel Bearing $ 9.65 GEV7D6018Z




Seal, Outer Rear Wheel Bearing $ 15.90 GEV7D6013Z

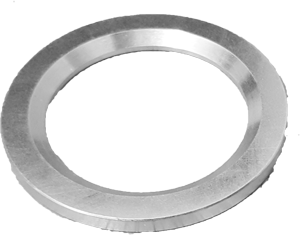

Spacer, Outer Bearing to Hub $ 11.75 AEV7D0186Z




Spacer, Outer Bearing to Hub $ 12.35 AEV7D0186PL





STEERING



Steering Arm - L/H $ 104.65 X022H6001Z
Steering Arm - R/H $ 104.65 X022H6000Z
Forged Chrome Moly steel - Made in U.S.A.
Tapered hole
7" Overall length
Some models will require bending of arm


Steering Arm - L/H $ 104.65 A022H6001Z
Steering Arm - R/H $ 104.65 A022H6000Z
Forged Chrome Moly steel - Made in U.S.A.
Straight hole
7" Overall length
Some models will require bending of arm


Steering Rack $ 447.50 XEV7H2703HT
Rolled threads
Heat treated teeth
25-5/8" Length overall



Steering Rack Chart




Shim, Steering Rack Tie Rod Ball
.010" Thk - Carbon Steel $ 2.95 X023H1061Z
.002" Thk - Carbon Steel $ N.L.A. X023H1060Z

Shim, Steering Rack Tie Rod Ball
.010" Thk - Stainless Steel $ 3.15 X023H1061S
.002" Thk - Stainless Steel $ 3.20 X023H1060S




BRAKE




Lotus rear rotor
Rotor, Front & Rear - Mk7S $ 205.00 X023J0001Z
9.570" Diameter
3.500" B.C.




Rotor, Front & Rear - Mk7 $ 211.00 XEV7J0001Z
9.570" Diameter
3.375" B.C.



Lotus brake rotor

Rotor, Front & Rear - Mk8 $ Inquire XEV8G0001Z
10.000" Diameter



Calipers Caliper, Front - L/H - AR $ 795.00 X023J6102HC
Caliper, Front - R/H - AR $ 795.00 X023J6103HC
Less pads
Resin impregnated
Hard coated



Caliper Plug - AR $ 28.50 X023J8101Z



O-Ring, Caliper Plug - AR $ 0.65 X023J8102Z



Caliper Piston - AR (2 inch dia) $ 35.50 X023J6135Z
Aluminum
Hard anodized coated


O-Ring, Caliper Piston - AR $ 18.00 X023J6151Z
2 inch I.D.



Caliper, Rear - L/H $ 945.00 A023J6102HC
Caliper, Rear - R/H $ 945.00 A023J6103HC
Less pads
Resin impregnated, Hard coated
2-1/8 inch diameter pistons
Not originally used by Elva


Caliper Plug      2-1/8" Pistons $ Inquire A023J8101Z



O-Ring, Caliper Plug      2-1/8" Pistons $ Inquire A023J8102Z



Caliper Piston     2-1/8" Diameter $ 43.25 A023J6135Z
Aluminum
Hard anodizing coated



O-Ring, Caliper Piston $ 8.90 A023J6151Z
2-1/8 inch I.D.



Caliper Bleeder Screw $ 7.25 X023J6057S



Bleeder Screw Cap $ 1.10 A023J6034Z




Tube Assy, Cross-over - AR/NR $ 13.50 X023J8003Z




Brake Pad Retainer $ 5.00 X023J3001Z
Stainless steel



Pad Retainer Kit $ 4.80 X023J9500Z
2 Nuts
2 Studs
2 Lockwashers


Pad Retainer Kit w/o Studs $ 1.75 X023J9501Z
2 Nuts
2 Lockwashers




ELECTRICAL




Headlight Unit (Lens) - Modern style $ 21.50 A023M6021Z
5-3/4" size




Headlight Socket - Modern style $ 23.50 HE66490




Bulb, Halogen Headlight - Modern style $ 10.75 A023M6360Z
LLB354




Headlight Housing $ 40.00 X023M6041
For 5-3/4" Headlight




Headlight Housing Gasket $ 15.75 X023M6044Z




Trim Screw Nut $ 7.75 X023M6004Z




Trim Screw Kit $ 8.25 X023M6039Z
Contains enough of the illustrated pieces for one            Headlight Assembly




Decal, Lucas Coil - SA 12 $ N.L.A. X023M2075Z



Decal, Lucas Coil - HA 12 $ 6.30 A023M2075Z





TRANSAXLE




Engine Adapter, Mk/BMW $ 720.00 AEV7Q6114Z
1-1/4"





Most parts are aftermarket reproductions and no inference is intended that any were manufactured by the original manufacturer.
