FRONT SUSPENSION


Front hub Chevron Front Hub - Left $ 1337.50 XB16C6009Z
Right hand thread
Chrome Moly steel

Front Hub - Right $ 1337.50 XB16C6008Z
Left hand thread
Chrome Moly steel


Retaining Circlip Chevron Hub Shim Retaining Circlip $ 1.65 XB06C6033Z

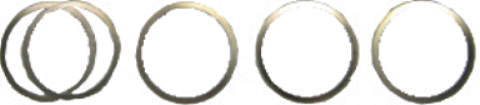

Shim kit front hub Chevron Shim Kit - Front Hub $ 10.25 XB16C1070Y
(2) .003" / (1) .004" / (1) .005" / (1) .010"
Stainless steel
Shims can be purchased individually


Spacer Chevron Spacer - Inner Bearing to Circlip $ 24.00 XB16C0185Z
Chrome Moly steel
Zinc plated

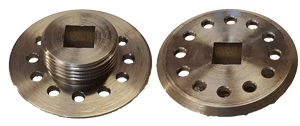

Retaining nut Chevron
Retaining nut - w/ holes $ 84.40 AB17C6033Z
Chrome Moly steel

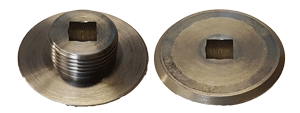

Retaining nut Chevron
Retaining nut - w/o holes $ 73.50 XB17C6033Z
Chrome Moly steel


Front upright Chevron Front Upright - L/H $ Inquire XB16C6006BA
Front Upright - R/H $ Inquire XB16C6005BA
Mag. Chromated
Upper and Lower Pin Retaining Set Screws are included

Retaining screw Chevron Front Upright Pin Retaining Set Screw Kit $ 1.00 AB16C9500Z
#10-24 UNC thread



Front Upright Pin - Upper $ 86.00 AB16C7001Z
Chrome Moly steel
Roller threads


Front Upright Pin - Lower $ 60.40 XB16C7002Z
Chrome Moly steel
Rolled threads


Washer lower upght Chevron
Washer for Lower Upright Pin $ 13.15 XB16C7000Z
Cadmium plated



Spacer outer bearing Chevron Spacer - Outer Bearing to Hub $ 23.90 XB16C0186Z
Chrome Moly steel
Zinc plated



Bearing 6010
Wheel Bearing $ Inquire GB06C6017Z
6010-2RS1



Spherical bearing Chevron
Spherical Bearing $ Inquire
Front upper camber link to upright
1-5/16" O.D. x 1/2" I.D.

Spherical bearing Chevron
Spherical Bearing $ Inquire
Front lower wishbone to upright
1-9/16" O.D. x 5/8" I.D.

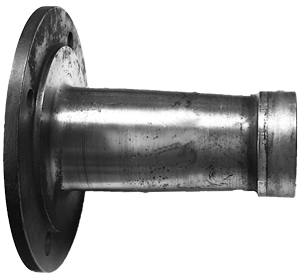

Front hub B17
Front Hub - B17 $ 1147.50 XB17C6008Z
Chrome Moly steel



Front hub stud Chevron Front Hub Stud $ 42.50 XB63C6500Z
Chrome Moly steel

hub stud washer Chevron
Front Hub Stud Washer $ 2.65 XB63C6501Z




REAR SUSPENSION


Rear hub OBB Chevron

Rear Hub - OBB $ Inquire AB08D0003Z
Chrome Moly steel



Rear hub IBB Chevron

Rear Hub - IBB $ 695.00 AB39D0003Z
Chrome Moly steel




Rear hub Chevron Rear Hub - Left $ 1457.50 XB16D0004Z
Right hand thread
Chrome Moly steel

Rear Hub - Right $ 1457.50 XB16D0003Z
Left hand thread
Chrome Moly steel

Spacer bearing Chevron
Spacer, Outer Bearing to Hub $ 17.75 XB16D0186Z
Chrome Moly steel
Plated

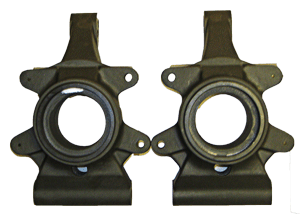

Carrier housing Chevron Carrier Housing - L/H $ 935.00 XB16D0055B
Carrier Housing - R/H $ 935.00 XB16D0044B
Mag. Chromate coated
Untapped mounting holes are 1/8 inch diameter
Caliper mounting holes have 7/16-20 UNF thread

Caliper mounting holes are positioned for mounting             calipers forward of axle




Lug nut Chevron
Lug nut - 3/8" thread $ 11.05 XB06G6000W
Two piece w/ floating flange



Wheel Stud - 2.91" Long - Type "O" head $ 30.75 BT29D6015Z
Wheel Stud - 3.25" Long - Type "O" head $ 30.75 XB06C6015Z
Wheel Stud - 3.44" Long - Type "O" head $ 33.30 BT18D6015Z
Wheel Stud - 3.63" Long - Type "O" head $ 31.00 BT21D6015Z
Wheel Stud - 3.63" Long - Type "M" head $ 32.00 BT21D6015M
Wheel Stud - 3.75" Long - Type "O" head $ 30.75 BT29C6015Z
Wheel Stud - 4.31" Long - Type "O" head $ 33.30 XB06D6015Z


Wheel Stud Length Measurement


Wheel Stud Length Chart



Wishbone rod Chevron
Rod, Lower Wishbone B19-B23 (B8?) $ 46.75 XB19D0191Z
Chrome Moly steel with rolled threads
7/16" Diameter - 9" O.A.L.
7/16 UNF - 7/16 UNF threads

Lower wishbone rod Chevron
Rod, Lower Wishbone $ 28.35 XB26D0191Z
Chrome Moly steel with rolled threads
1/2" Diameter - 11-1/8" O.A.L.
5/16 UNF - 1/2 UNF - 5/16 UNF threads

Lower wishbone rod Chevron
Rod, Lower Wishbone $ 32.25 AB26D0191Z
Chrome Moly steel with rolled threads
1/2" Diameter - 11-1/8" O.A.L.
5/16 UNF - 1/2 UNF - 7/16 UNF threads


Rod, Lower Wishbone - B27, 28, 38 and 39 $ 56.00 BB26D0191Z
Chrome Moly steel with rolled threads
1/2" Diameter - 10-5/8" O.A.L.
5/16 UNF - 1/2 UNF - 1/2 UNF threads

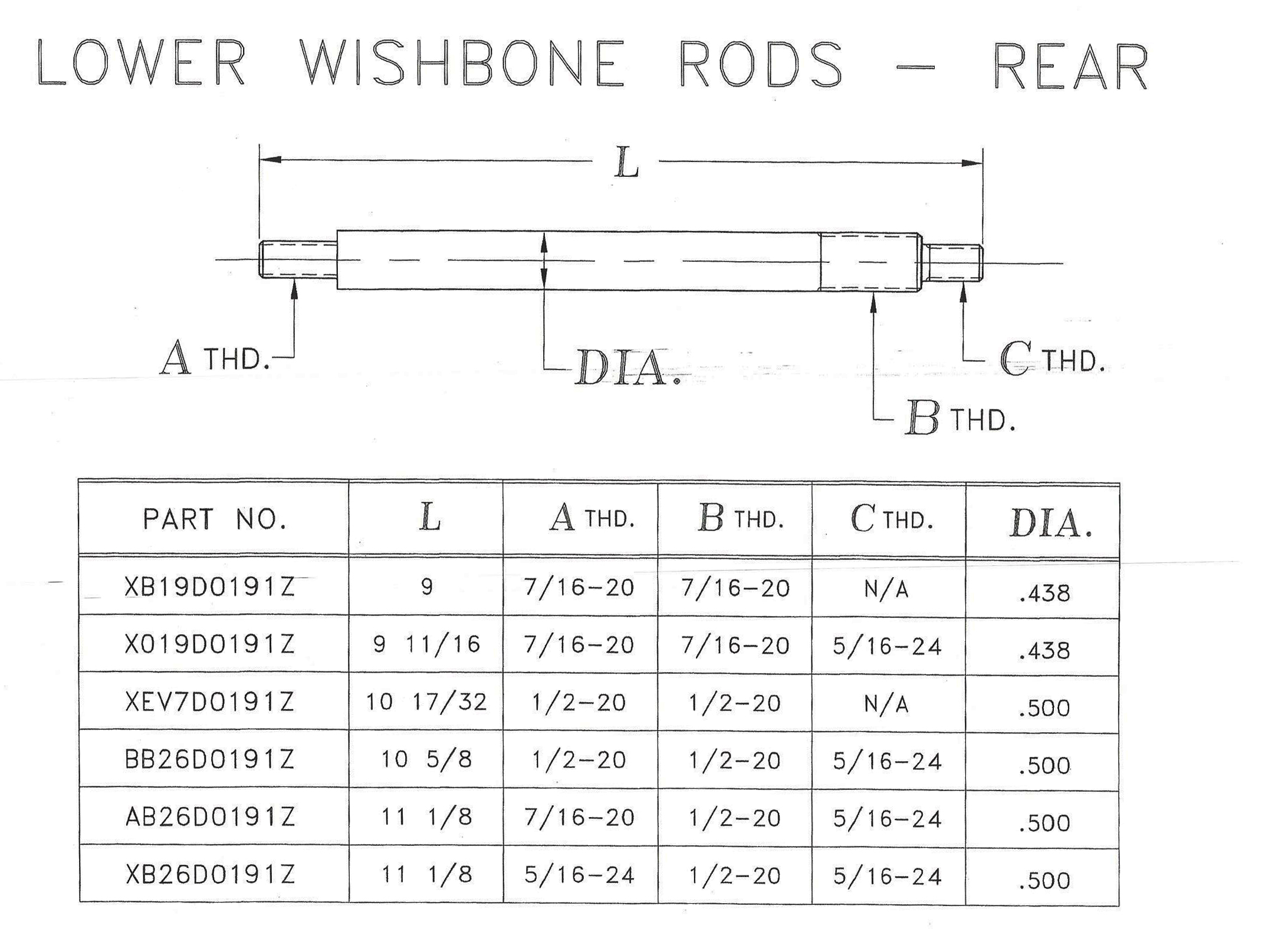

Lower Wishbone Rods - Rear

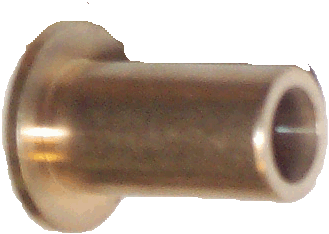

Rear Suspension Insert - Early $ 26.85 XB19D0192Z
7/16 inch I.D.
Silicon bronze

Rear Suspension Insert - Late $ 26.85 XB26D0192Z
1/2 inch I.D.
Silicon bronze


Rear Suspension Washer     B19 - B23 $ 14.85 XB19D0193Z
Chrome Moly steel
Plated

Rear Suspension Washer    B26 - B29 $ 14.85 XB26D0193Z
Chrome Moly steel
Plated


Universal Joint - w/ grease fitting $ 65.00 X023D6005Z
1300 Series

Universal Joint - w/o grease fitting $ 62.65 A023D6005Z
1300 Series

Universal Joint - w/o grease fitting - Heavy Duty $ 67.75 A023D6005HD
1300 Series

Universal Joint - w/o grease fitting $ 79.85 B023D6005Z
1310 Series

Universal Joint - w/o grease fitting - Heavy Duty $ 54.15 B023D6005HD
1310 Series



Universal Joint Selection Chart







Clevis Bolt Measurement



Upper clevis bolt Upper Clevis Bolt - Eccentric $ 169.50 AB06D0190Z
1/2 - 20 UNF thread
Length - 3.750"
Rolled thread
Chrome Moly steel and plated


clevis bolt Chevron Upper Clevis Bolt $ Inquire XB06D0190Z
1/2 - 20 UNF thread
Length - 3.750"
Rolled thread
Chrome Moly steel and plated


Spherical rod end Spherical Rod End $ 115.25 A023D6003W
3/8" Diameter
2.500" Length
5/8 - 18 UNF thread
Chrome Moly steel with rolled threads
TFE Liner
Made in U.S.A.




Spherical Rod End Measurement



Yoke - Internal Spline $ 260.65 XB06D7005Z
Forged in U.S.A.
Chrome Moly steel
Magnetic Partical Inspected (MPI)



Yoke - External Spline (only 2 in stock) $ 260.00 XB19D7005Z




Splined yoke - Chevron Yoke - External Spline $ 295.00 XB19D7005Z-CM
Forged in U.S.A.
Chrome Moly steel
Magnetic Partical Inspected (MPI)



Washer, Rear Axle / Yoke $ 6.40 AB16D0048PL
Hardened and plated
.390" I.D. x 1.660" O.D. x .165 thick


c/v Joint flange

C/V Joint Flange - Splined $ 266.00 AB19D7005Z
Chrome Moly steel


C/V retaining screw
Screw, C/V Joint Retaining $ 0.85 AB19D0172Z



Washer, C/V Joint Screw $ 0.25 AB19D5015Z



bearing 6010
Wheel Bearing $ Inquire GB06C6017Z
6010-2RS1




Wheel Bearing $ Inquire GBT18D6017Z
6011-2RS1





ENGINE


Engine bushing Chevron
Bushing, Engine Mount $ N.L.A. XB31E6011Z
7/16" I.D. x 1" O.D. x 1-3/8" Long
Chrome Moly steel inner sleeve


Engine bushing Chevron
Bushing, Engine Mount $ Inquire X023E6011Z
1/2" I.D. x 1-1/16" O.D. x 1-3/8" Long
Chrome Moly steel inner sleeve
Black Oxide coated outer sleeve


Engine bushing Chevron
Bushing, Engine Mount $ 35.75 XB16E6011Z
3/8" I.D. x 1" O.D. x 2" Long
Chrome Moly steel inner sleeve



bushing Clevron
Bushing, Engine Mount $ 32.75 AB16E6011Z
7/16" I.D. x 1" O.D. x 2" Long
Chrome Moly steel inner sleeve




WHEELS

Wheel nut Chevron

Wheel Nut - Left (Red) $ 156.75 XB06G0007R
Right hand thread

Wheel Nut - Right (Green) $ 156.75 XB06G0006G
Left hand thread

Hub retaining spring Chevron
Spring, Wheel nut retaining $ 24.90 XB16G3033Z
Stainless steel


Wheel drive peg Chevron
Wheel Drive Peg $ 4.15 XB16G6015Z





STEERING


Locking washer
Steering Rack Locking Washer $ 5.25 X023H5003Z
Plated


Tie rod end

Ball Joint, Steering Arm (Tie Rod End) $ 41.50 X023H6007W





Steering rack Chevron Steering Rack $ 447.50 XB06H2703HT
Rolled threads
Heat treated teech



Steering Rack Chart




Bellows
Steering Rack Bellows - Left $ 20.15 A023H6027Z

Steering Rack Bellows - Right $ 23.15 B023H6098Z



Steering rack shim Shim, Steering Rack Tie-Rod Ball
.010 Thk - Carbon steel $ 2.95 X023H1061Z
.002 Thk - Carbon steel $ N.L.A. X023H1060Z

Steering rack shim Shim, Steering Rack Tie-Rod Ball
.010 Thk - Stainless steel $ 3.15 X023H1061S
.002 Thk - Stainless steel $ 3.20 X023H1060S




BRAKE


Brake rotor top hat
Brake Rotor Top Hat - Special $ 265.00 AB16J2000Z
Requires using flat head screws to mount onto hub




Brake rotor top hat

Brake Rotor Top Hat $

265.00

XB16J2000Z




Brake rotor top hat

Brake Rotor Top Hat (C/V Joint) $ 212.50 XB29J2000Z




Brake rotor
Brake Rotor - Specify Diameter $ Inquire
Available in 10", 10-1/8", 10-1/4", and 10-1/2"
Unidirectional, Gas vents, Stress relieved



AR Calipers AR Caliper - L/H $ 795.00 X023J6102HC
AR Caliper - R/H $ 795.00 X023J6103HC
Less Pads
Resin impregnated, Hard coated
2 inch diameter pistons


Caliper plug AR

Caliper Plug - AR $ 28.50 X023J8101Z




O-ring AR

O-Ring, Caliper Plug - AR $ 0.65 X023J8102Z




Caliper piston AR
Caliper Piston - AR (2 inch diameter) $ 35.50 X023J6135Z
Aluminum
Hard anodizing coated





O-Ring, Caliper Piston - AR $ 18.00 X023J6151Z
2 inch I.D.



Caliper pistons Caliper - L/H $ Inquire A023J6102HC
Caliper - R/H $ Inquire A023J6103HC
Less pads
Resin impregnated, Hard coated
2-1/8 inch diameter pistons
Not originally used by Elva


Caliper plug

Caliper Plug - 2-1/8" Pistons $ Inquire A023J8101Z





O-Ring, Caliper Plus - 2-1/8" Pistons $ Inquire A023J8102Z




Caliper piston
Caliper Piston (2-1/8 inch diameter) # 43.25 A023J6135Z
Aluminum
Hard anodized coated





O-Ring, Caliper Pisgon $ 7.80 A023J6151Z
2-1/8 inch I.D.



Bleeder screw
Caliper Bleeder Screw $ 7.25 X023J6057S



Bleeder  screw cap
Bleeder Screw Cap $ 1.10 A023J6034Z



Cross-over tube

Tube Assy, Cross-over - AR $ 19.75 X023J8003Z




Brake pad retainer
Brake Pad Retainer $ 5.00 X023J3001Z
Stainless steel



Pad Retaining Kit w/Studs $ 4.80 X023J9500Z
2 Nuts
2 Studs
2 Lockwashers


Pad retaining kit Pad Retaining Kit w/o Studs $ 1.75 X023J9501Z
2 Nuts
2 Lockwashers


Balance bar Chevron
Balance Bar Assembly $ 292.50 XB06J0009Z
Individual pieces available




Balance Bar Clevis $ 66.50 X023J1533Z
Nickel plated




Balalnce Bar $ 30.00 XB06J1530Z
Chrome Moly steel
Rolled threads



Balance Bar Assembly Drawing





MISCELLANEOUS





Starter Adapter YBM Engine $ 187.00 XYBMQ7013Z






Chevron Decal   Inquire






Chevron Embroidered Emblem   Inquire




Raised or domed hard plastic decals
Chevron decal 4-1/4" Long $ Inquire
Round decal 1-1/4" Diameter $ Inquire


To Chevron Wheels


Most parts are aftermarket reproductions and no inference is intended that any were manufactured by the original manufacturer.
