FRONT SUSPENSION


Upper Ball Joint $ 136.50 B023C6007Z
5/8 - 18 UNF thread
Modern Style


Axle $ 79.25 BT21C6008Z
Chrome Moly steel
Rolled threads



'D' Washer (large) $ 13.40 X050C6000Z
Plated



Front Wheel Stud - BT8A $ Inquire BT08C6015Z
3-7/16" O.A.L.
Chrome Moly steel
Rolled threads


Front Wheel Stud - BT21 $ 13.75 BT21C6015X
2.800" Length
Chrome Moly steel
Rolled threads

Front Wheel Stud - BT21 $ 18.75 BT21C6015Z
3.095" Length
Chrome Moly steel
Rolled threads

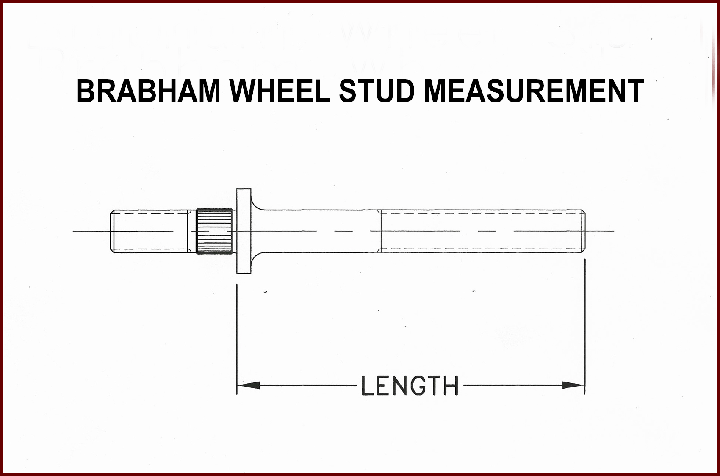

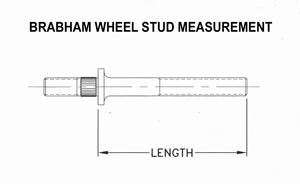

Front Wheel Stud Measurement




Wheel Stud - 2.91" Long $ 33.00 BT29D6015Z
Wheel Stud - 3.25" Long $ 24.15 XB06C6015Z
Wheel Stud - 3.44" Long $ 24.15 BT18D6015Z
Wheel Stud - 3.63" Long $ 33.00 BT21D6015Z
Wheel Stud - 3.75" Long $ 24.15 BT29C6015Z
Wheel Stud - 4.31" Long $ Inquire XB06D6015Z
All studs are Chrome Moly steel with rolled threads


Wheel Stud - 3.44" Long $ Inquire BT18D6015Q
Both threads are 7/16" UNF
Chrome Moly steel with rolled threads

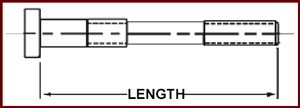

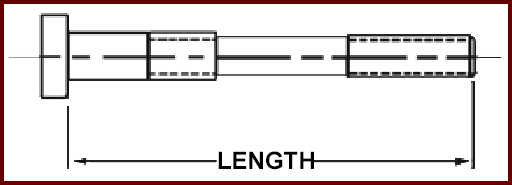

Wheel Stud Length Measurement

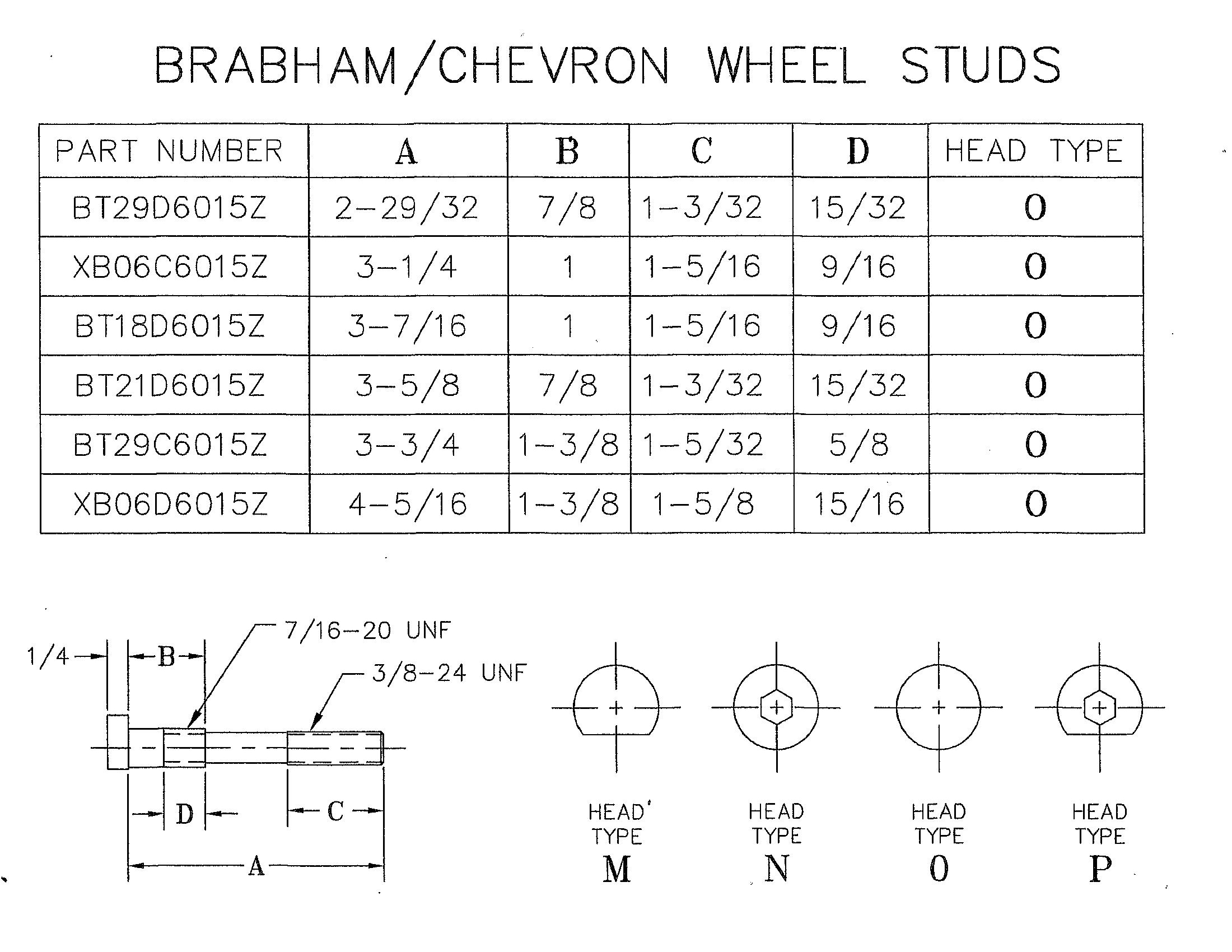

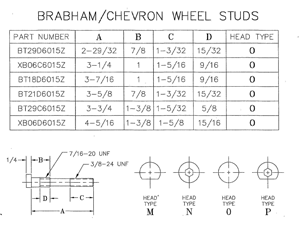

Wheel Stud Length Chart





Wheel Stud Nut $ 11.25 AB06G6015Z




Wheel Bearing, Inner $ Inquire G019C6017Z
08125 / 08231




Wheel Bearing, Inner $ Inquire G036C6042Z
L44610 / L44649




Wheel Bearing, Outer $ Inquire G036C6041Z
LM11910 / LM11949





REAR SUSPENSION




Rear Axle - BT21 $ 495.00 BT21D0003Z
Chrome Moly steel






Rear Axle - BT23C, BT29 $ 595.00 BT29D0003Z
Chrome Moly steel




Nut, Rear Axle Retaining - BT21 $ 10.25 BT21D0048Z
Chrome Moly steel



Rear Axle Retaining Stud - BT21 $ 35.75 BT21D0049Z
Chrome Moly steel
Rolled threads



Splined Yoke - BT8A $ 215.00 BT08D7005Z
1310 Series



Splined Yoke - BT16/18/21 -------1 left in stock------- $ 232.50 BT18D7005Z-CM
1300 Series U/J
Forged in the U.S.A.
Chrome Moly steel
Magnetic Particle Inspected (MPI)



Splined Yoke - BT23C/BT29 $ 202.50 BT29D7005Z-CS
1300 Series U/J
Forged in the U.S.A.
Carbon steel
Magnetic Particle Inspected (MPI)


Splined Yoke - BT23C/BT29 $ 235.00 BT29D7005Z-CM
1300 Series U/J
Forged in the U.S.A.
Chrome Moly steel
Magnetic Particle Inspected (MPI)



C/V Joint Flange, Splined - BT18/BT21 $ 205.00 BT21D7005Z
Chrome Moly steel





C/V Joint Flange, Splined - BT8/BT29/BT35/BT36 $ 205.00 BT35D7005Z
Chrome Moly steel





Screw, C/V Joint Retaining $ 0.85 AB19D0172Z



Washer, C/V Joint Screw $ 0.25 AB19D5015Z



Lock Nut - Rear Axle Yoke $ 2.65 X023D6019Z
5/8 - 18 UNF thread
Zinc plated
Special thickness


Washer, Rear Axle / Yoke $ 6.40 X023D0048PL
Hardened
Plated
For 5/8" diameter bolt


Washer, Rear Axle / Yoke $ N.L.A. AB16D0048Z
Hardened
For 3/8" diameter bolt

Washer, Rear Axle / Yoke $ 6.40 AB16D0048PL
.390" I.D. x 1.660" O.D. x .165" thick
Hardened
Plated


Carrier Housing $ 1050.00 BT21D0066B
Mag. Chromate coated
Outer Bearing Diameter - 72mm
Inner Bearing Diameter - 80 mm
Lower wishbone pickups sleeved with Chrome Moly steel
MRD 1229


Carrier Housing - BT21C $ 755.00 BT22D0066B
Mag. Chromate coated
Outer Bearing Diameter - 90mm
Inner Bearing Diameter - 85 mm
Lower wishbone pickups sleeved with Chrome Moly steel
MRD 1228


Carrier Housing - BT23C $ 710.00 BT23D0066B
Mag. Chromate coated
Outer Bearing Diameter - 90mm
Inner Bearing Diameter - 85 mm
Lower wishbone pickups sleeved with Chrome Moly steel
MRD 1228


Carrier Housing - BT29 $ 620.00 BT29D0066B
Mag. Chromate coated
Outer Bearing Diameter - 72mm
Inner Bearing Diameter - 85 mm
Lower wishbone pickups sleeved with Chrome Moly steel
MRD 1229


Carrier Housing - BT35/36 $ 620.00 BT35D0066B
Mag. Chromate coated
Outer Bearing Diameter - 72mm
Inner Bearing Diameter - 85 mm
Lower wishbone pickups sleeved with Chrome Moly steel
MRD 1229


Universal Joint - w/ grease fitting $ 65.00 X023D6005Z
1300 Series

Universal Joint - w/o grease fitting $ 62.65 A023D6005Z
1300 Series

Universal Joint - w/o grease fitting - Heavy Duty $ 67.75 A023D6005HD
1300 Series

Universal Joint - w/o grease fitting $ 47.25 B023D6005Z
1310 Series



Universal Joint Selection Chart






Spherical Bearing, Rear Wishbone $ 66.50 ABT29D6001W
1/2" I.D. x 15/16" O.D.




Lug Nut $ 7.85 XB06G6000W
Two piece w/ floating flange



Wheel Stud - 2.91" Long $ 33.00 BT29D6015Z
Wheel Stud - 3.25" Long $ 24.15 XB06C6015Z
Wheel Stud - 3.44" Long $ 24.15 BT18D6015Z
Wheel Stud - 3.63" Long $ 33.00 BT21D6015Z
Wheel Stud - 3.75" Long $ 24.15 BT29C6015Z
Wheel Stud - 4.31" Long $ Inquire XB06D6015Z
All studs are Chrome Moly steel with rolled threads



Wheel Stud Length Measurement





Wheel Stud Length Chart





Wheel Stud Nut $ 11.25 AB06G6015Z

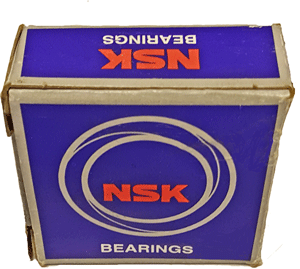

Wheel Bearing $ Inquire GBT18D6003Z
6207-2RS1
High temperature side seals



Wheel Bearing $ Inquire G036D6017Z
6208-2RS1



Wheel Bearing $ 19.30 BT18D6017Z
6209-2RS1



Wheel Spacer, Rear $ Inquire BT21D5000Z
0.250" Thk



Clevis Bolt - BT21 $ 96.00 BT21D0190Z
1/2 - 20 UNF thread    Length - 4.185"
Chrome Moly steel and Un-plated
Rolled thread



Clevis Bolt Measurement



Spacer, Bearing to Bearing - BT21 $ 24.50 BT21D0148Z
Chrome Moly steel
Zinc plated


Spacer, Outer Bearing to Hub - Rear - BT21 $ 14.75 BT21D0186Z
Chrome Moly steel
Zinc plated


Spacer, Bearing to Bearing - BT29 $ 24.50 BT29D0148Z
Chrome Moly steel
Zinc plated


Spacer, Outer Bearing to Hub - Rear - BT29 $ 14.75 BT29D0186Z
Chrome Moly steel
Zinc plated




ENGINE

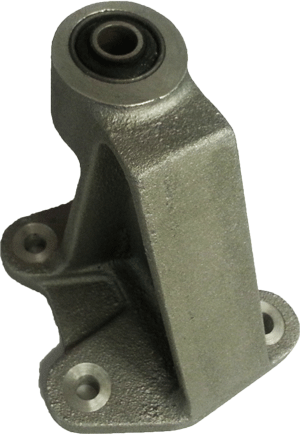

Engine Mount - L/H $ Inquire BT29E6000A(G)
MRD C721
Aluminum
Bushing is installed

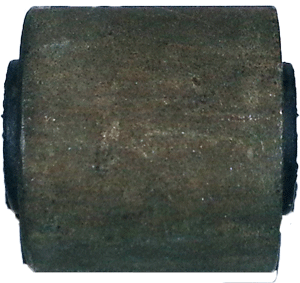

Engine Mounting Bush $ 21.50 BT29E6011Z
17/16" I.D. x 1-1/16" O.D. x 1-1/8" Long





TRANSAXLE



Side Cover - L/H  Mk8 $ 779.00 BBT9F8879B
Magnesium

Side Cover - R/H  Mk8 $ 795.00 BBT9F8880B
Magnesium

Side Cover - L/H  Mk9 $ 370.00 CBT9F8879B
Magnesium

Side Cover - R/H  Mk9 $ 395.00 CBT9F8880B
Magnesium




STEERING



Steering Arm - L/H $ 104.65 X022H6001Z
Steering Arm - R/H $ 104.65 X022H6000Z
Forged Chrome Moly steel - Made in U.S.A.
Tapered hole
7" Overall length
Some models might require bending of arm


Steering Arm - L/H $ 104.65 A022H6001Z
Steering Arm - R/H $ 104.65 A022H6000Z
Forged Chrome Moly steel - Made in U.S.A.
Straight hole
7" Overall length
Some models might require bending of arm




BRAKE





Rotor, Front - BT14, BT21 $ 225.00 BT21J6008Z
9.740" Diameter
Cryo treated

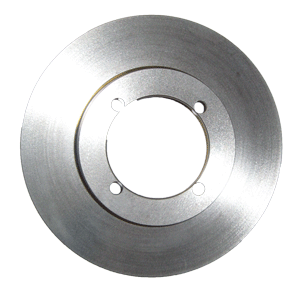

Rotor, Rear - BT21 $ Inquire BT21J0001Z(G)
9.750" Diameter
Cryo treated





Rotor, Front - BT29 $ Inquire
Cryo treated




Rotor, Rear - BT29 $ Inquire
9.750" Diameter
Cryo treated




Rotor, Rear - BT35 $ Inquire
10.500" Diameter
Cryo treated




Calipers Caliper, Front - L/H - AR $ 795.00 X023J6102HC
Caliper, Front - R/H - AR $ 795.00 X023J6103HC
Less pads
Resin impregnated, Hard coated
2 inch diameter pistons



Caliper Plug - AR $ 28.50 X023J8101Z




O-Ring, Caliper Plug- AR $ 0.65 X023J8102Z



Caliper Piston - AR (2 inch diameter) $ 35.50 X023J6135Z
Aluminum
Hard anodized coated



O-Ring, Caliper Piston - AR $ 18.00 X023J6151Z
2 inch I.D.



Caliper - Front - L/H $ 945.00 A023J6102HC
Caliper - Front - R/H $ 945.00 A023J6103HC
Less pads
Resin impregnated, hard coated
2-1/8 inch diameter pistons
Not originally used by Brabham



Caliper Plug    2-1/8" Pistons $ Inquire A023J8101Z



O-Ring, Caliper Plug   2-1/8" Pistons $ Inquire A023J8102Z



Caliper Piston    2-1/8 inch diameter $ 43.25 A023J6135Z
Aluminum
Hard anodized coated


O-Ring, Caliper Piston $ 8.90 A023J6151Z
2-1/8 inch I.D.




Caliper Bleeder Screw $ 7.25 X023J6057S



Bleeder Screw Cap $ 1.10 A023J6034Z




Tube Assy, Cross-over - AR/NR $ 13.50 X023J8003Z





Brake Pad Retainer $ 5.00 X023J3001Z
Stainless steel



Pad Retaining Kit $ 4.80 X023J9500Z
2 Nuts
2 Studs
2 Lockwashers


Pad Retaining Kit (w/o Studs) $ 1.75 X023J9501Z
2 Nuts
2 Lockwashers




CLUTCH





2.250" Ford / FT200 $ 625.00 X0FTQ4073B
Mag. Chromate coated




2.250" Ford / FT200 $ 665.00 X0FTQ4073K
Phosphate coated






2.000" Ford / FT200 $ 625.00 A0FTQ4073B
Mag. Chromate coated




2.000" Ford / FT200 $ 665.00 A0FTQ4073K
Phosphate coated





Most parts are aftermarket reproductions and no inference is intended that any were manufactured by the original manufacturer.
