FRONT SUSPENSION

B023C6007Z
B023C6007Z
Upper Ball Joint
5/8 - 18 UNF thread

Modern Style
$

136.50


X/B 007C6014Z
A/C 007C6014Z
Front Hub - Aluminum $ 325.00
Hard Coated - Black
Specify wheel stud hole size
Brake rotor B.C. is 3.400 inches
Wheel stud B.C. is 4.000 inches
Suitable for use on models up to BT21 that use Triumph Spitfire vertical links.



BT21C6008Z
BT21C6008Z
Axle
Chrome-moly steel
Rolled threads
$


79.25



X050C6000Z
X050C6000Z
'D' Washer (large)
Plated
$

13.40


BT08C6015Z
BT08C6015Z
Front Wheel Stud - BT8A
  3-7/16" O.A.L.
  Rolled Threads
  Chrome-moly steel
$


13.75



BT21C6015X/BT21C6015Z
BT21C6015X / BT21C6015Z
Front Wheel Stud - BT21
  Length is 2.800 inches
  Rolled threads
  Chrome-moly steel
$


13.75


Front Wheel Stud - BT21
  Length is 3.095 inches
  Rolled threads
  Chrome-moly steel

$



Inquire




Brabham Front Wheel Stud

BT29D6015Z/XB06C6015Z/BT18D6015Z/BT21D6015Z/BT29C6015Z/XB06D6015Z

Wheel Stud - 2.91" Long
Wheel Stud - 3.25" Long
Wheel Stud - 3.44" Long
Wheel Stud - 3.63" Long
Wheel Stud - 3.75" Long
Wheel Stud - 4.31" Long
All studs are chrome-moly steel with rolled threads

$
$
$
$
$
$

33.00
24.15
24.15
33.00
24.15
24.15


BT29D6015Z / XB06C6015Z / BT18D6015Z / BT21D6015Z / BT29C6015Z / XB06D6015Z


BT18D6015Q
BT18D6015Q
Wheel Stud - 3.44" Long
  Both threads are 7/16" UNF
  Chrome-moly steel
$

25.25

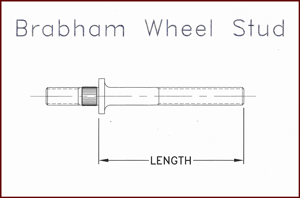

Wheel Stud Length Measurement

Wheel Stud Length Chart

AB06G6015Z
AB06G6015Z
Wheel Stud Nut $ 11.25

X019C6017Z
G019C6017Z
Wheel Bearing, Inner
08125 / 08231
$

69.00


LCR
G036C6042Z
Wheel Bearing, Inner
L44610 / L44649
$

Inquire


LCR
G036C6041Z
Wheel Bearing, Outer
LM11910 / LM11949
$ Inquire


REAR SUSPENSION
BT29D0003Z
BT29D0003Z
Rear Axle, Chrome-moly steel - BT23C, BT29 $ 335.00



BT21D0003Z
BT21D0003Z
Rear Axle, Chrome-moly steel - BT21 $ 355.00

BT21D0048Z
BT21D0048Z
Nut, Rear Axle Retaining
Chrome moly steel
$

Inquire



BT21D0049Z
Rear Axle Retaining Stud
Chrome moly steel
Rolled threads
$

35.75




BT08D7005Z
BT08D7005Z
Yoke - BT8A
1310 Series U/J
$

215.00


BT18D7005Z
BT18D7005Z
Yoke - BT16/18/21
1300 Series U/J
Forged in the U.S.A.
Medium Carbon steel
Magnetic Particle Inspected (MPI)
$



Inquire




BT18D7005Z-CM
BT18D7005Z-CM
Yoke - BT16/18/21
1300 Series U/J
Forged in the U.S.A.
Chrome-moly steel
Magnetic Particle Inspected (MPI)
$



232.00




BT29D7005Z
BT29D7005Z
Yoke - BT29/BT23C  - - 2 left in stock --
1300 Series U/J

$


125.00



BT29D7005Z-CS
BT29D7005Z-CS
Splined Yoke - BT29/BT23C
1300 Series U/J
Forged in the U.S.A.
Medium Carbon steel
Magnetic Particle Inspected (MPI)
$




Inquire







BT29D7005Z-CM
BT29D7005Z-CM
Splined Yoke - BT29/BT23C
1300 Series U/J
Forged in the U.S.A.
Chrome-moly steel
Magnetic Particle Inspected (MPI)
$




215.00





BT21D7005Z
BT21D7005Z
C/V Joint Flange, Splined - BT18/BT21
Chrome-moly steel
$

205.00


BT35D7005Z
BT35D7005Z
C/V Joint Flange, Splined - BT8/BT29/BT35/BT36
Chrome-moly steel
$

205.00


AB19D0172Z
AB19D0172Z
Screw, C/V Joint Retaining $ 0.85

AB19D5015Z
AB19D5015Z
Washer, CV Joint Screw $ 0.25

X023D6019Z
X023D6019Z
Lock Nut - Rear Axle Yoke
5/8 - 18 UNF Thread
Zinc plated
$

3.25


X023D0048Z
X023D0048Z
Washer, Rear Axle / Yoke
Hardened
For 5/8" diameter bolt
$


N.L.A.



X023D0048PL
X023D0048PL
Washer, Rear Axle / Yoke
Hardened
Plated
For 5/8" diameter bolt
$


6.40



BT21D0048Z
BT21D0048Z
Nut, Rear Axle Retaining
Chrome moly steel
$

Inquire


AB16D0048Z
AB16D0048Z
Washer, Rear Axle / Yoke
Hardened
For 3/8" diameter bolt
$


N.L.A.





AB16D0048PL
AB16D0048PL
Washer, Rear Axle / Yoke
Hardened
Plated
For 3/8" diameter bolt
$



6.40






BT21D0066B
BT21D0066B

Carrier Housing - BT16/21 $ 1050.00
Magnesium Chromate coated
Outer Bearing Diameter - 72mm
Inner Bearing Diameter - 80 mm
Lower Wishbone pickups sleeved with Chrome-moly steel
MRD 1229


BT22D0066B
BT22D0066B
Carrier Housing - BT21C $ 755.00
Magnesium Chromate coated
Outer Bearing Diameter - 90mm
Inner Bearing Diameter - 85 mm
Lower Wishbone pickups sleeved with Chrome-moly steel
MRD 1228


BT23D0066B
BT23D0066B
Carrier Housing - BT23C $ 710.00
Magnesium Chromate coated
Outer Bearing Diameter - 90mm
Inner Bearing Diameter - 85 mm
Lower Wishbone pickups sleeved with Chrome-moly steel
MRD 1228

BT29D0066B
BT29D0066B

Carrier Housing - BT29 $ 620.00
Magnesium Chromate coated
Outer Bearing Diameter - 72mm
Inner Bearing Diameter - 85 mm
Lower Wishbone pickups sleeved with Chrome-moly steel
MRD 1229




BT35D0066B
BT35D0066B

Carrier Housing - BT35/36 $ 620.00
Magnesium Chromate coated
Outer Bearing Diameter - 72mm
Inner Bearing Diameter - 85 mm
Lower Wishbone pickups sleeved with Chrome-moly steel
MRD 1229


X023D6005Z/A023D6005Z/B023D6005Z
X023D6005Z / A023D6005Z / A023D6005HD / B023D6005Z
Universal Joint - w/ grease fitting
1300 Series
$

54.90


Universal Joint - w/o grease fitting
1300 Series
$

52.65


Universal Joint - w/o grease fitting - Heavy Duty
1300 Series
$

66.10


Universal Joint - w/o grease fitting
1310 Series
$

47.25


Universal Joint Selection Chart

ABT29D6001W
ABT29D6001W
Spherical Bearing, Rear Wishbone
15/16" O.D. x 1/2" I.D.
$

66.50


XB06G6000W
XB06G6000W
Lug Nut - 3/8" Thread
Two piece w/ floating flange
$
7.85


BT29D6015Z/XB06C6015Z/BT18D6015Z/BT29C6015Z/XB06D6015Z

Wheel Stud - 2.91" Long
Wheel Stud - 3.25" Long
Wheel Stud - 3.44" Long
Wheel Stud - 3.63" Long
Wheel Stud - 3.75" Long
Wheel Stud - 4.31" Long
All studs are chrome-moly steel with rolled threads

$
$
$
$
$
$

33.00
24.15
24.15
33.00
24.15
24.15


BT29D6015Z / XB06C6015Z / BT18D6015Z / BT21D6015Z / BT29C6015Z / XB06D6015Z



Wheel Stud Length Measurement

Wheel Stud Length Chart

AB06G6015Z
AB06G6015Z
Wheel Stud Nut $ 11.25


GBT18D6003Z
Wheel Bearing
6207-2RS1
High temperature side seals
$
51.30

LCR
G036D6017Z
Wheel Bearing
6208-2RS1
$

Inquire


BT18D6017Z
BT18D6017Z
Wheel Bearing
6209-2RS1
$
19.30

BT21D5000Z
BT21D5000Z
Wheel Spacer, Rear  -  0.250" Thick $ 89.00

BT21D0190Z
BT21D0190Z
Clevis Bolt - BT21
1/2 - 20 UNF Thread     Length - 4.185"
Chrome-moly steel and Un-Plated
Rolled threads
$



115.00




Clevis Bolt Measurement

BT21D0148Z
BT21D0148Z
Spacer, Bearing to Bearing - BT21
Chrome-moly steel
Zinc plated
$


24.50



BT21D0186Z
BT21D0186Z
Spacer, Outer Bearing to Hub - Rear - BT21
Chrome-moly steel
Zinc plated
$


14.75



BT29D0148Z
BT29D0148Z
Spacer, Bearing to Bearing - BT29
Chrome-moly steel
Zinc plated
$


24.50



BT29D0186Z
BT29D0186Z
Spacer, Outer Bearing to Hub - Rear - BT29
Chrome-moly steel
Zinc plated
$


14.75






ENGINE

BT29D6000A
BT29E6000A(G)
Engine Mount - L/H
MRD C721
Aluminum
Bushing is installed
$


Inquire




BT29E6011Z
Engine Mounting Bush
1/2 I.D. x 1-1/16 O.D. x 1-3/8 Long
$

Inquire





TRANSAXLE

Side Cover - L/H  Mk8
Magnesium
$

779.00

Side Cover - R/H  Mk8
Magnesium
$

795.00

Side Cover - L/H  Mk9
Magnesium
$

370.00

Side Cover - R/H  Mk9
Magnesium
$

395.00


BBT9F8879B / BBT9F8880B / CBT9F8879B / CBT9F8880B


STEERING
X022H6001Z/X022H6000Z
X022H6001Z / X022H6000Z

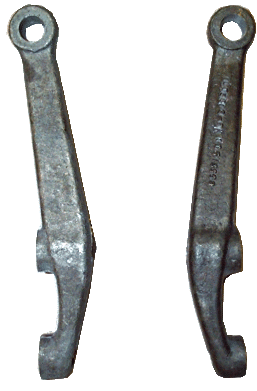

Steering Arm - L/H
Steering Arm - R/H
Forged Chrome-moly steel  -  Made in U.S.A.
Tapered Hole
7" Overall Length
$
$


148.75
148.75



A022H6001Z/A022H6000Z
A022H6001Z / A022H6000Z
Steering Arm - L/H
Steering Arm - R/H
Forged Chrome-moly steel  -  Made in U.S.A.
Straight Hole
7" Overall Length
$
$


Inquire
Inquire





BRAKE


BT21J6008Z
BT21J6008Z
Front Rotor - BT14, BT21
Diameter - 9.750"
$

225.00


LCR-16 Front Rotor - BT29 $ Inquire

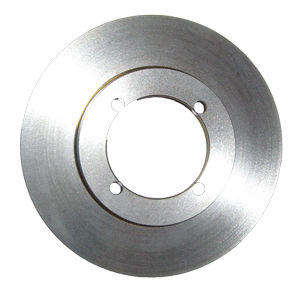

LCR-18 Rear Rotor - BT21
Diameter - 9.750"
$

215.00


LCR-15 Rear Rotor - BT29
Diameter - 9.750"
$

Inquire


LCR-17 Rear Rotor - BT35
Diameter - 10.500"
$

215.00



X023J6102HC/X023J6103HC
X023J6102HC/X023J6103HC

AR Caliper - Front
Less pads
Resin Impregnated, Hard Coated
2 inch dia. Pistons

$


795.00 ea




X023J8101Z
X023J8101Z
Caliper Plug - AR $ 28.50

X023J8102Z
X023J8102Z
O-Ring, Caliper Plug - AR $ 0.65

X023J6135Z
X023J6135Z
Caliper Piston - AR  (2 inch dia)
Aluminum
Hard Anodized coated
$


35.50



X023J6151Z
X023J6151Z
O-Ring, Caliper Piston - AR
2 inch I.D.
$

16.25





A023J6102HC/A023J6103HC
A023J6102HC/A023J6103HC
Caliper - Front
Less pads
Resin Impregnated, Hard Coated
2-1/8 inch dia. Pistons
Not originally used by
Brabham
$



945.00 ea





A023J8101Z
A023J8101Z

Caliper Plug - 2-1/8" Pistons $ 17.50


A023J8102Z
A023J8102Z

O-Ring, Caliper Plug - 2-1/8" Pistons $ Inquire


A023J6135Z
A023J6135Z

Caliper Piston (2-1/8 inch dia)
Aluminum
Hard Anodized coated
$


43.25




A023J6151Z
A023J6151Z

O-Ring, Caliper Piston
2-1/8  inch I.D.
$

8.90


X023J6057S
X023J6057S
Caliper Bleeder Screw $ 7.25


A023J6034Z
Bleeder Screw Cap $ 1.10

X023J8003Z
X023J8003Z
Tube Assy, Cross-over - AR/NR $ 13.50

X023J3001Z
X023J3001Z
Brake Pad Retainer
Stainless Steel
$

5.00




X023J9500Z
X023J9500Z
Pad Retaining Kit $ 9.00
2 Nuts
2 Studs (Stainless Steel)
2 Lockwashers

CLUTCH

X0FTQ4073B
X0FTQ4073B
2.250" Ford / FT200 $ 475.00

A0FTQ4073B
A0FTQ4073B
2.000" Ford / FT200 $ 475.00



                  To Brabham wheels







Most parts are aftermarket reproductions and no inference is intended that any were manufactured by the original manufacturer.
